Advantage Continuous Linear – Recessed

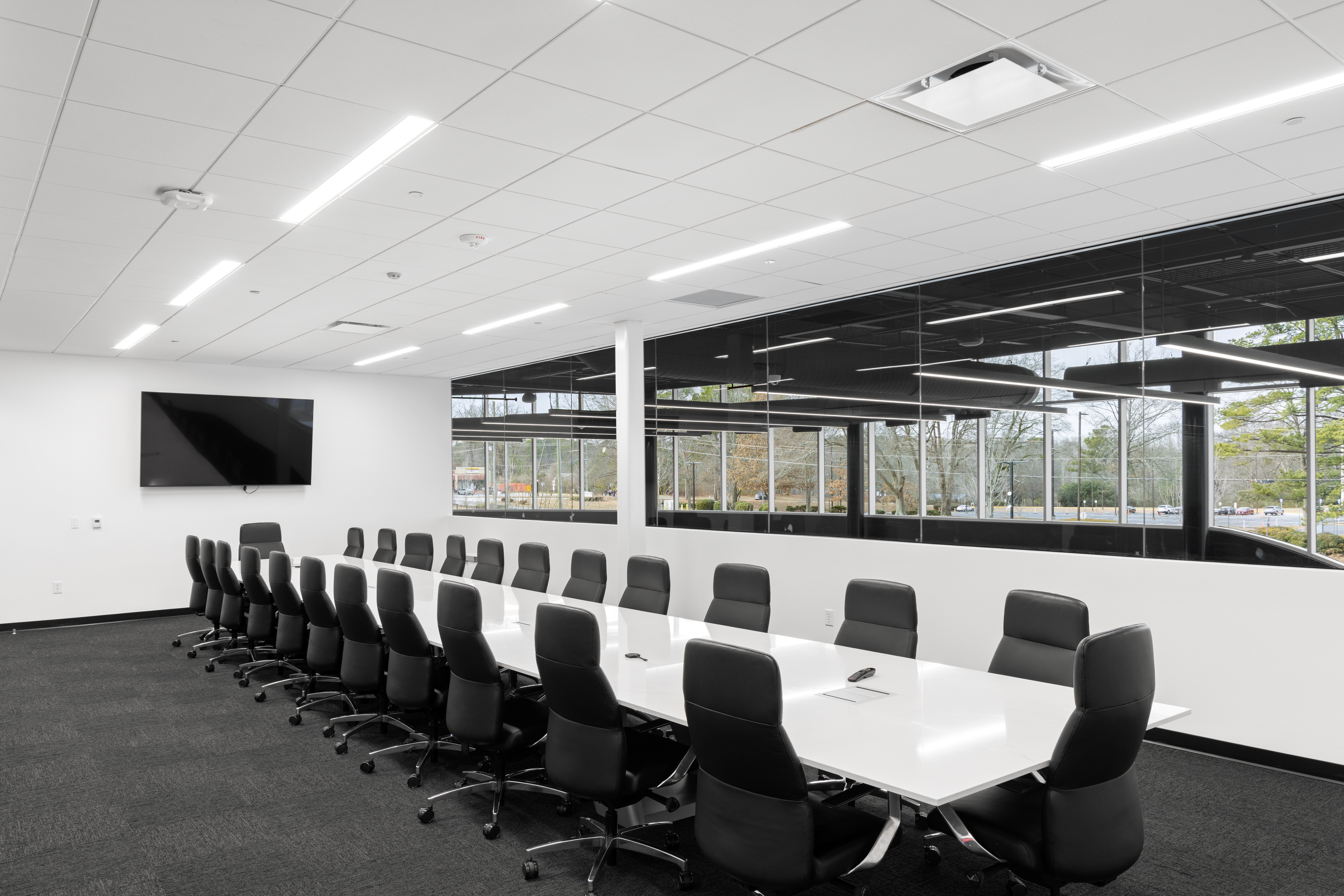

The Advantage Continuous Linear Recessed (ACL3R) offers tremendous design flexibility for commercial applications. The ACL3 creates seamless continuous runs recessed into either hard or grid-style ceilings, using straight runs, geometric patterns, or custom linear designs to provide clean aesthetics for conference rooms, hallways, open office or reception areas.

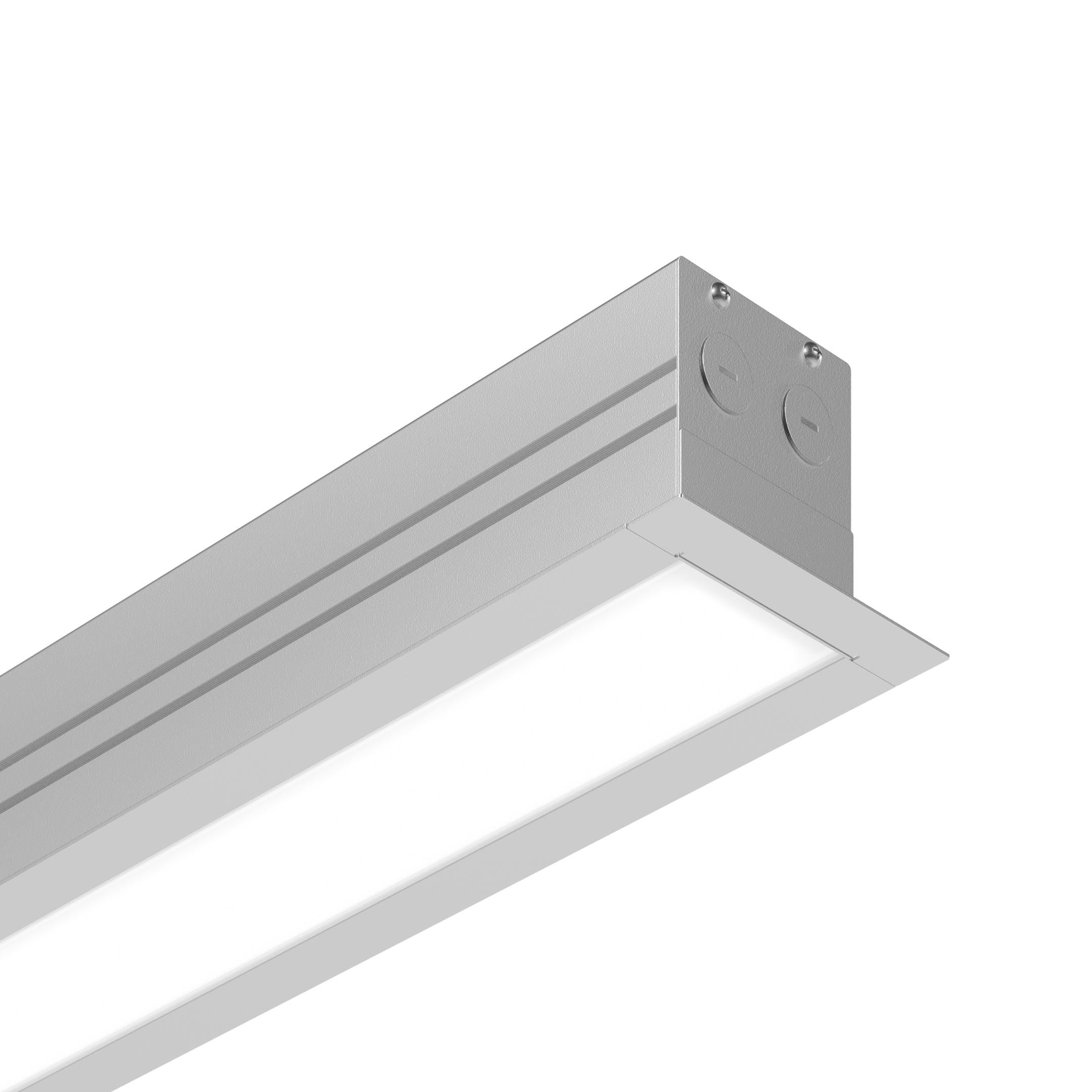

ACL3R is available in flanged, flangeless, or grid configurations, providing flexibility to complement a wide range of architectural environments.
At an ultra-high color rendering index (90 CRI minimum), object colors in the space are realistically rendered for a natural feel.
A range of luminaire level lighting control (LLLC) options are offered with the ACL3R for both code compliance and energy savings. Third party controls (3PC) integration is offered for additional flexibility, where LSI luminaires are paired with other manufacturers’ control platforms.
Custom lumen packages and finishes are available. Contact your LSI Customer Service or Quotesperson for shop drawings or pricing information.
Quick Actions
Available Variations
Features & Specifications
- Versatile Design & Construction
- 90-degree horizontal corner
- 90-degree vertical corner available for seamless wall-to-ceiling linear runs
- 3.25″ width and height nominal
- Extruded Aluminum housing in black or white trim finishes standard
- Custom finish available
- Flexible Lighting Performance
- Wide (standard) or batwing (indirect) distribution patterns
- 90 CRI standard for high visual acuity
- Roll Form Lens for seamless runs up to 100′.
- Recessed Mounting Styles
- Flangeless (mud-flange) and flanged styles for hard ceiling applications

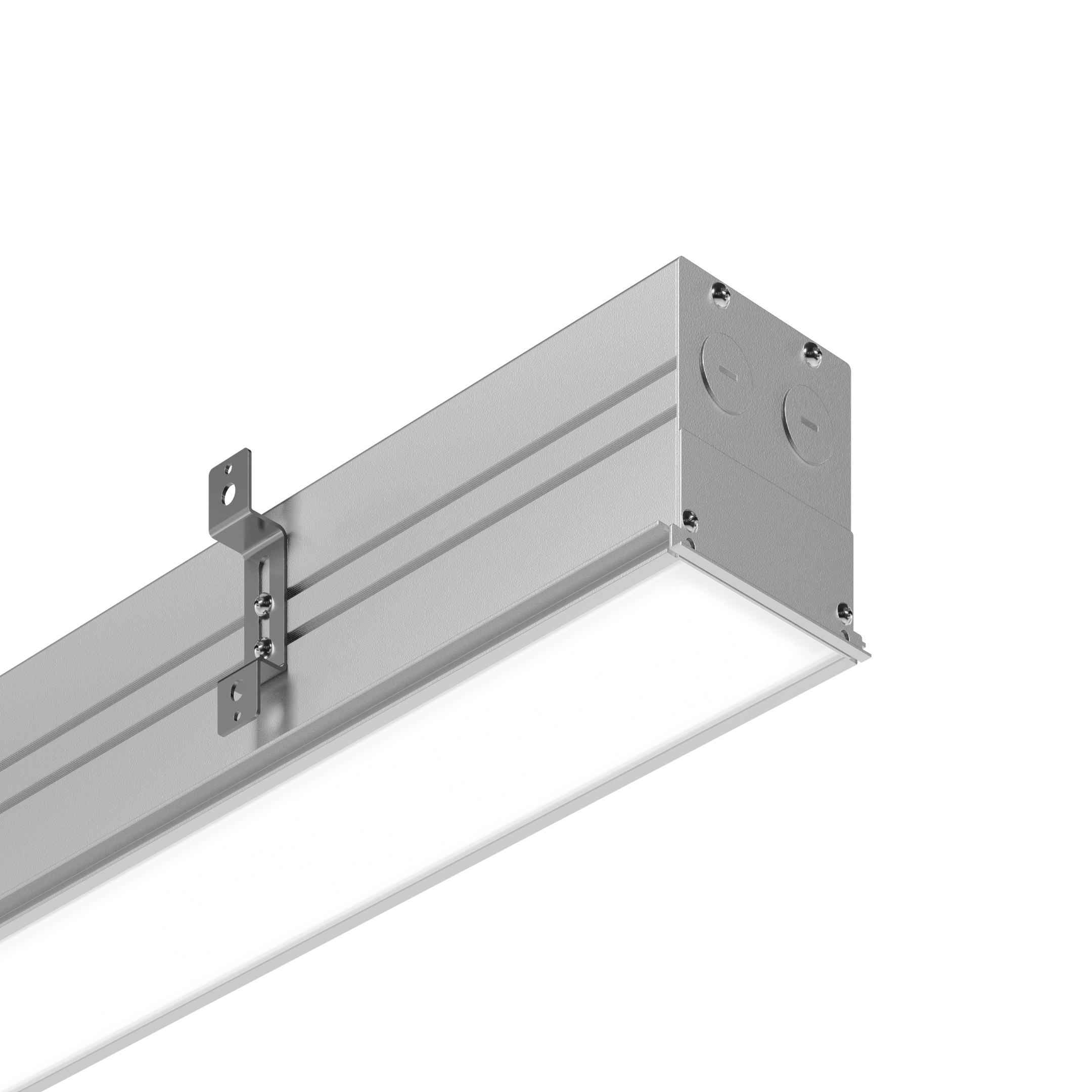

- Grid mount for 15/16 and 9/16 grid celings
- Slot grid mounting style available
Resources & Downloads
Photometrics & Applications
ACL3 BIMobject® REVIT® Family
ACL3R BIMobject® REVIT® Family
Markets
- Automotive
- Commercial
- Restaurants
Lighting Calculation Tools
Typical Room: 40′ x 40′ x 10′
Calculation Reflectances: Ceiling-80%Â Walls-50%Â Floor-20%
Target Value: 45fc Average
Calculations for Direct Lumens Only
