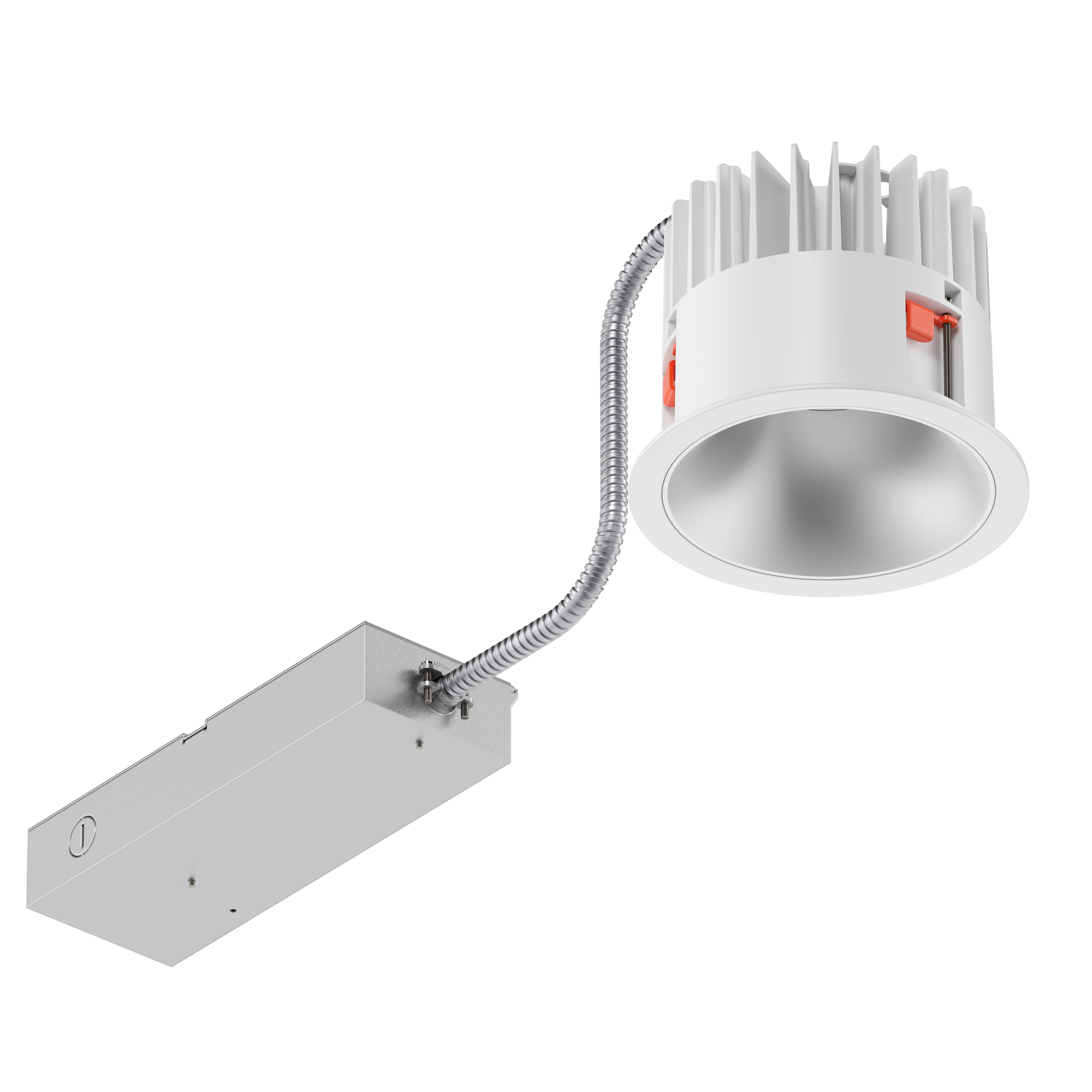

The white 6 inch High Output Downlight circular light engine housing, featuring the external driver compartment. Seen from an angle below the fixture.

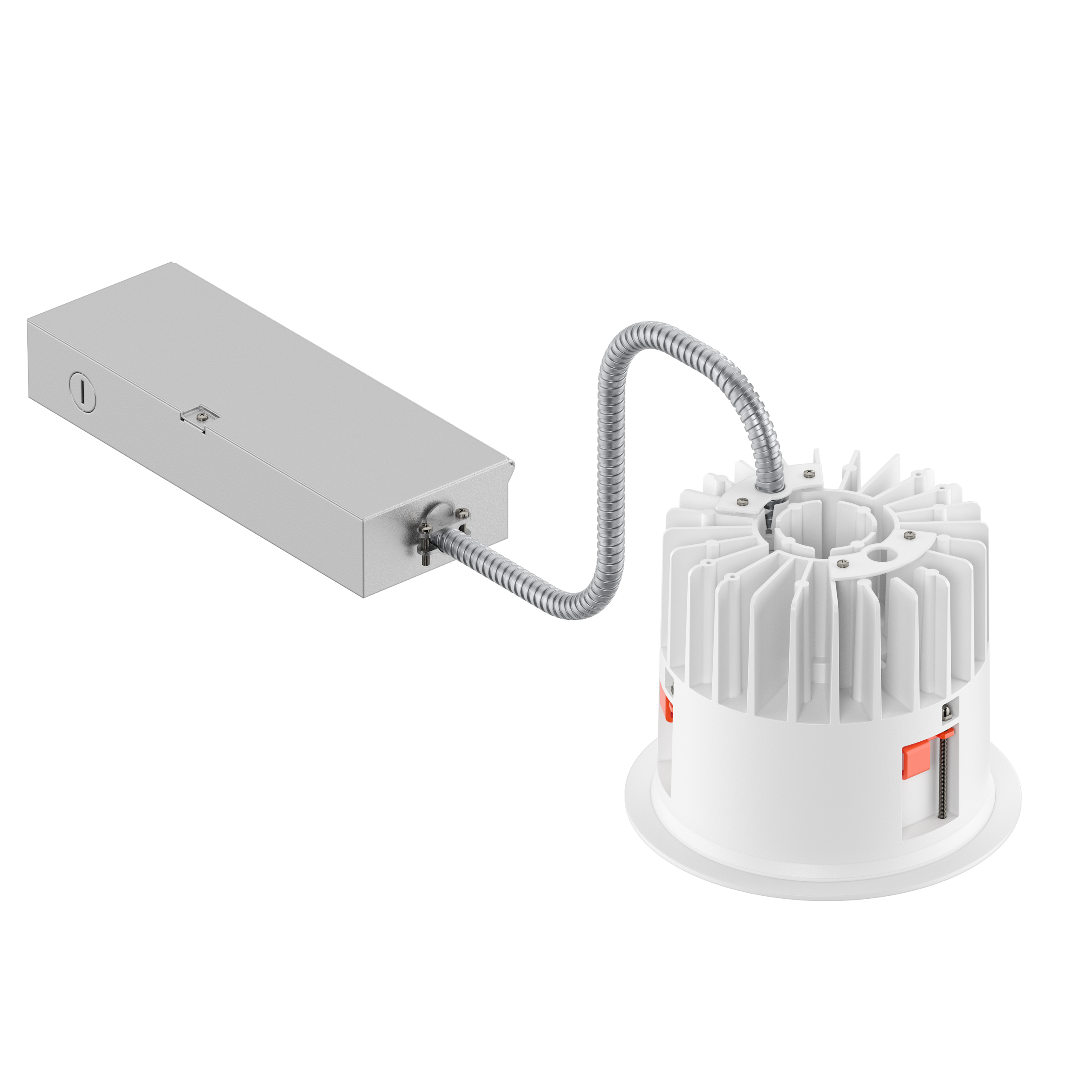

The white 6 inch High Output Downlight circular light engine housing, featuring the external driver compartment. Seen from an angle above the fixture.

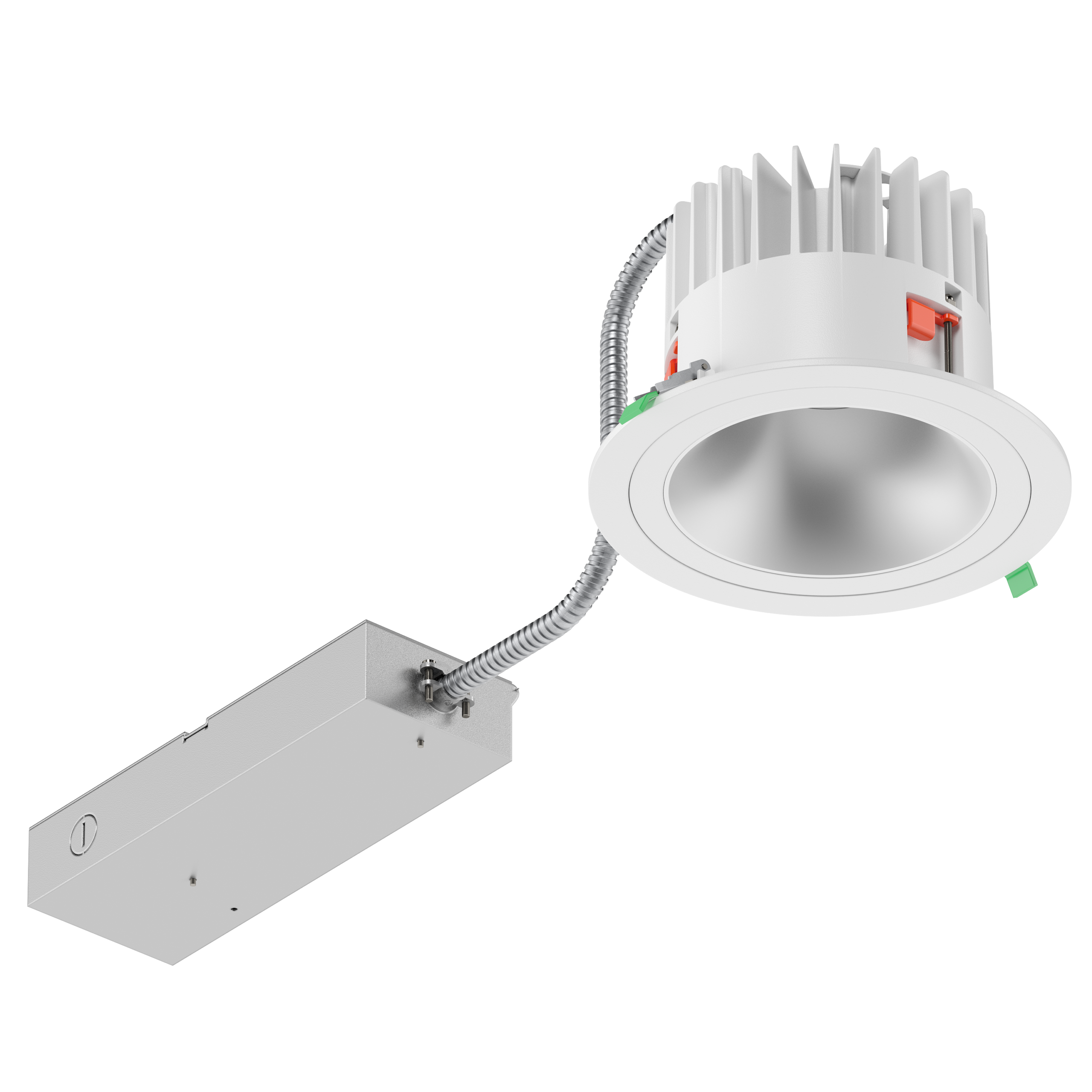

The white 8 inch High Output Downlight circular light engine housing, featuring the external driver compartment. Seen from an angle below the fixture.

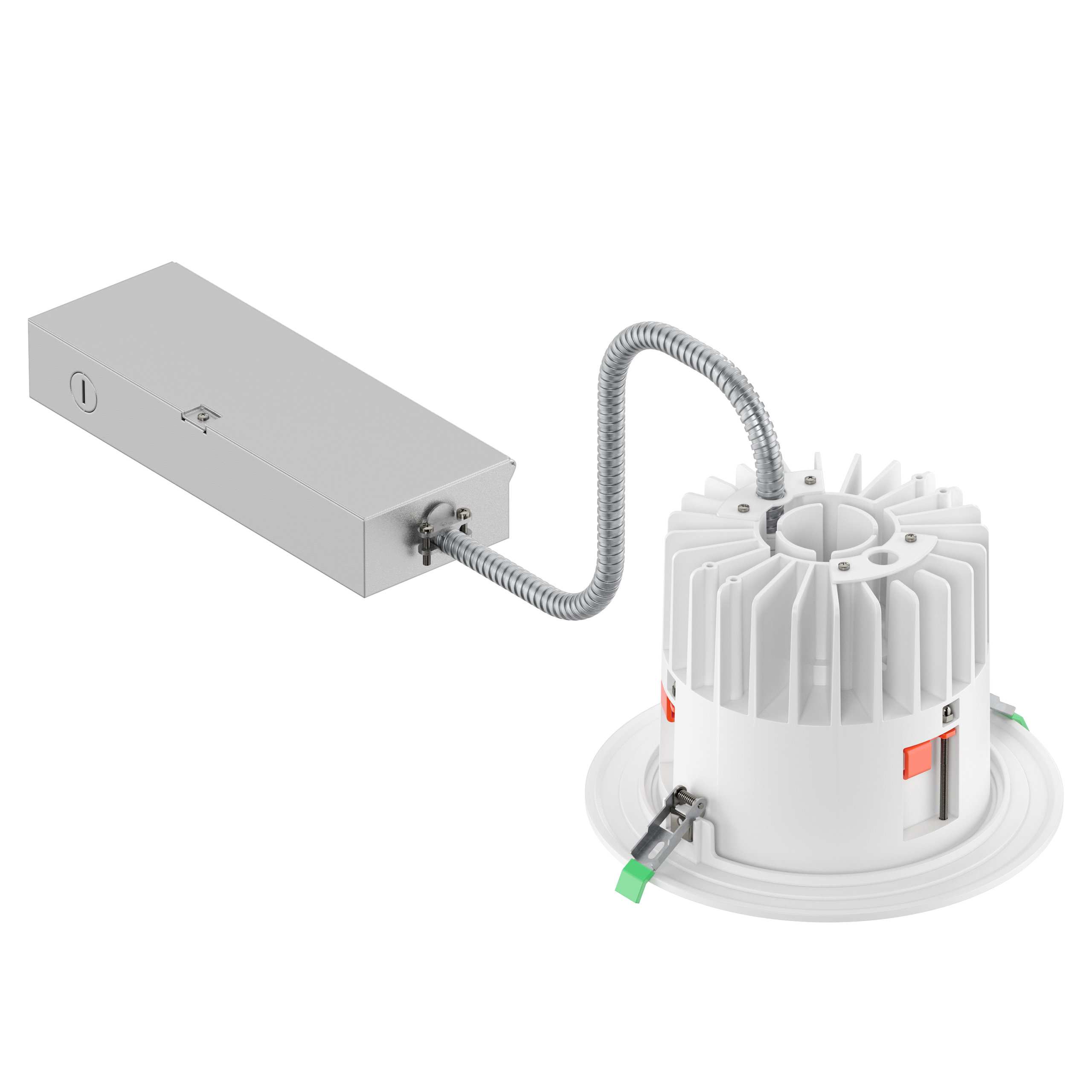

The white 8 inch High Output Downlight circular light engine housing, featuring the external driver compartment. Seen from an angle above the fixture.

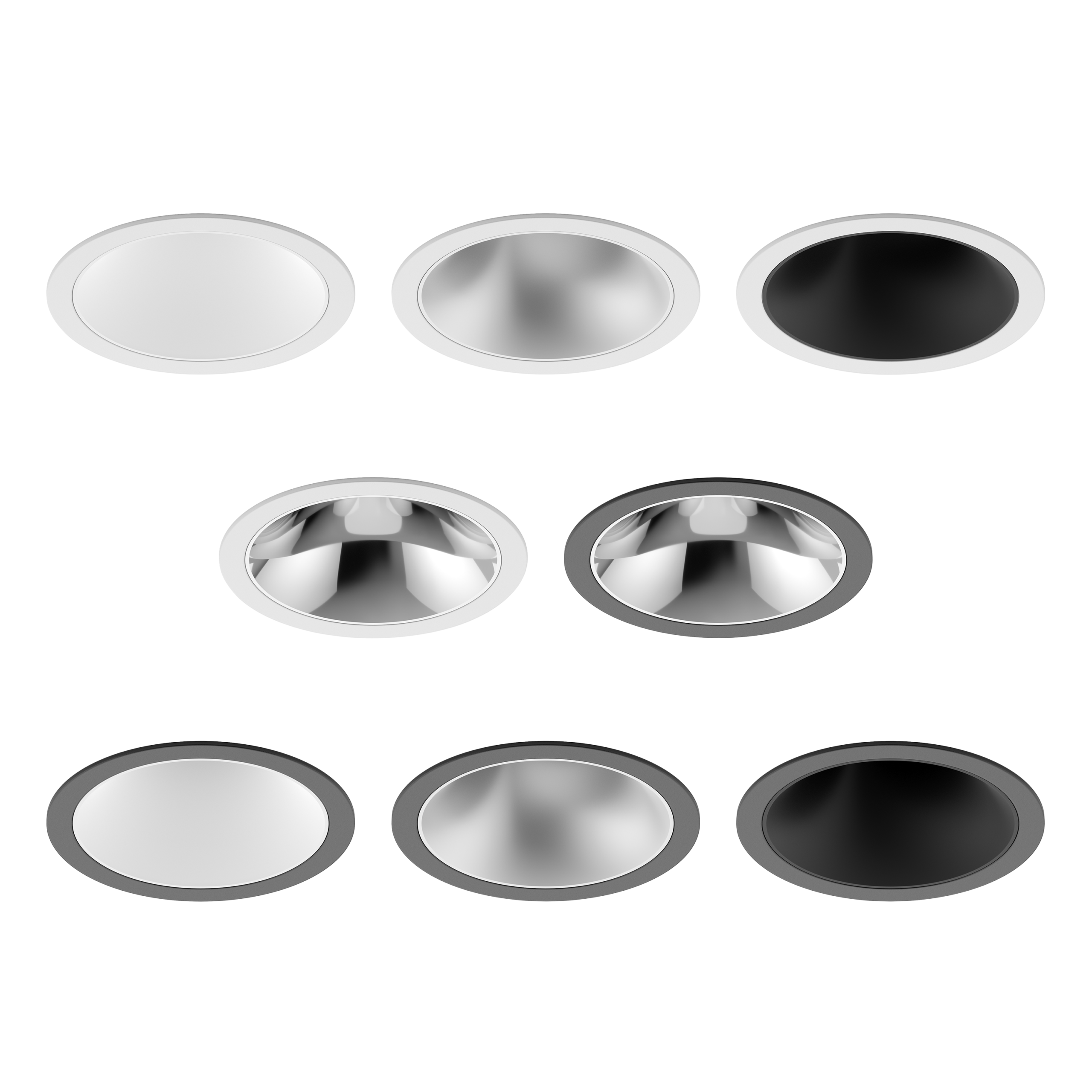

A range of the HDL downlight reflector and trim images, seen from below the ceiling.

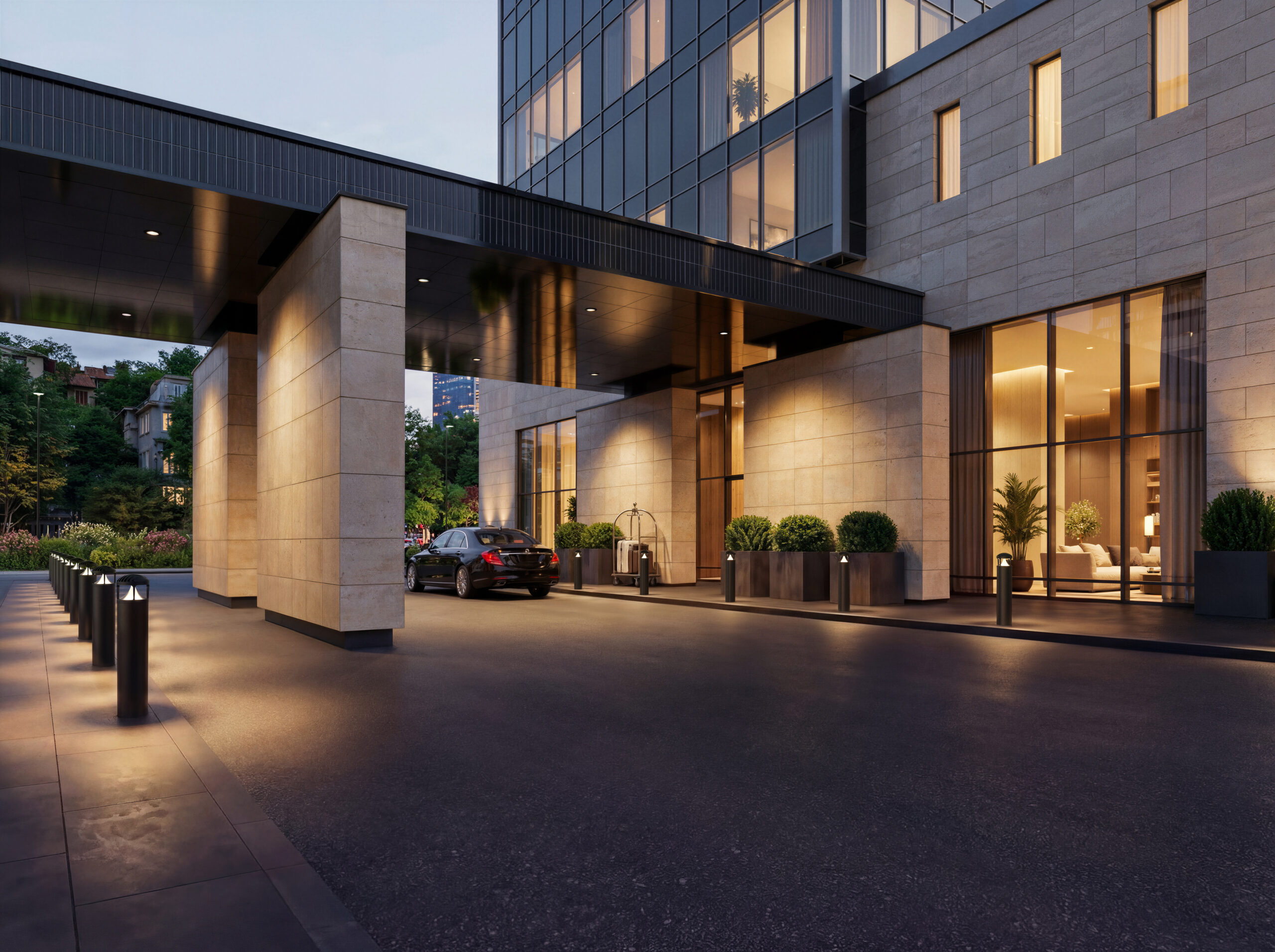

A dusk scene featuring the external entryway and loading area of a hotel. The entrance features an overhanging canopy 20 feet tall, in which the HDL fixture is installed. At the tall mounting height, the HDL downlight illuminates the loading area.

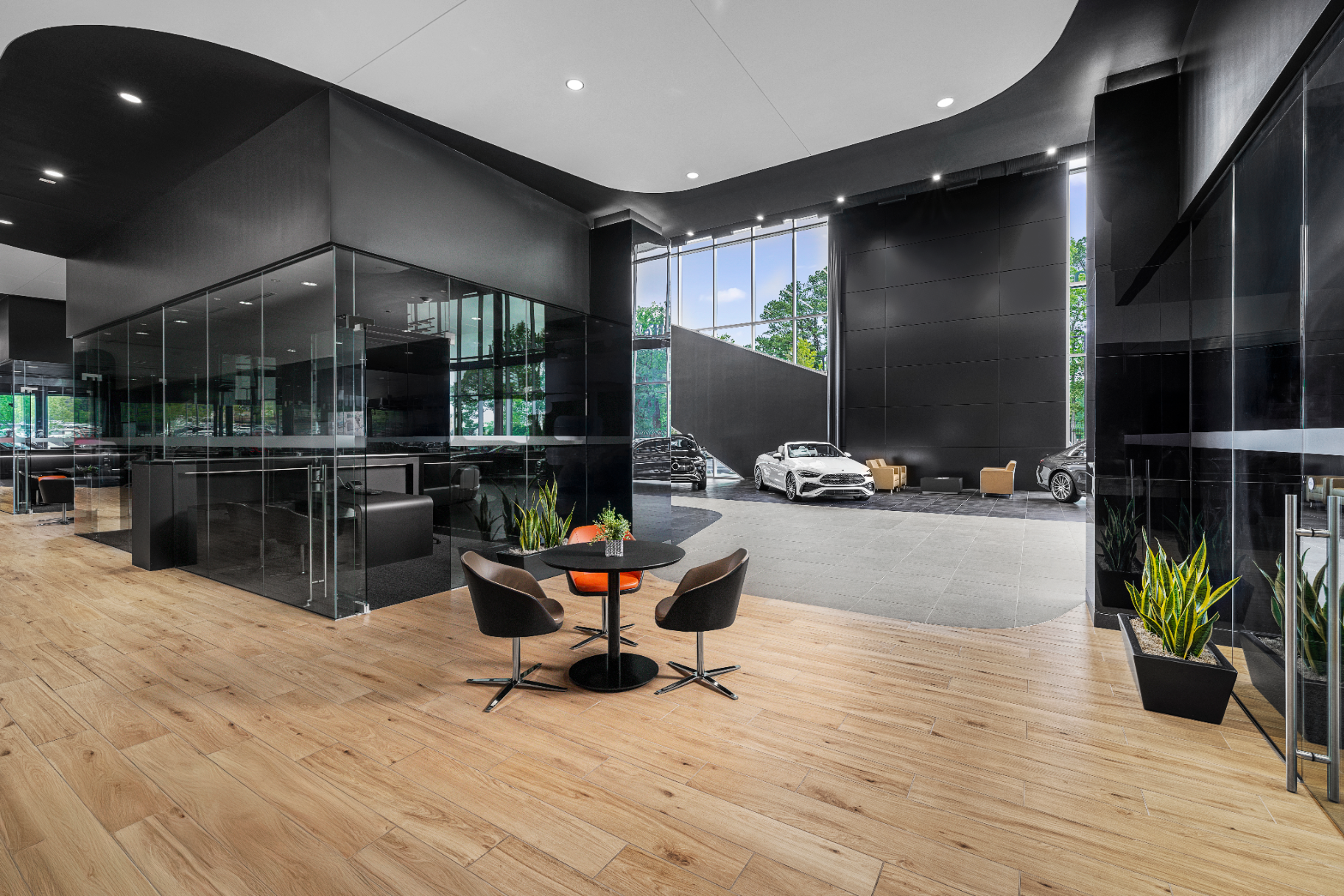

The interior of a high-end automotive dealership, featuring 16' tall ceilings, a guest waiting area, and various car models. The HDL downlights installed in the ceiling are illuminating the scene.

High Output Downlight

HDL

The HDL High Output Downlight family is engineered to deliver precise, high-intensity illumination, especially in spaces with high ceilings and demanding visual requirements. Powerful lumen packages up to 10,000lm enable mounting heights up to 24 feet.

Wet-location rated below the ceiling, the HDL confidently extends from interior spaces to building entrances and overhangs, ensuring consistent illumination for safe and welcoming entryways.

Common applications include automotive dealerships, transportation hubs, and transit halls. Retail, financial institutions, libraries and art galleries with multi-story stacks use this product to provide the focused, high-fidelity illumination without harmful UV exposure.

With powerful outputs, fewer compromises, and confidence at every height, the HDL is designed to help you reach higher.

Features & Specifications

Powerful Lumen Packages = Impressive Mounting Heights
- Standard Packages: 7,000, 8,000, 9,000, & 10,000 lumens
  - Enables mounting heights up to 24’
- Custom Packages: Available upon request from 5,000 – 10,500 lumens in 500 lumen increments
Range of Aesthetic Customizations:
- 2 Trim Sizes: 6” & 8”
- 2 Trim Finishes: White & Black
- 4 Reflector Finishes: Haze Semi-Diffused, Matte White, Matte Black, Specular
Wet-Rated from below for use in both indoor and outdoor applications.
Installer-friendly mounting features:
- Self-tightening flag screws clamp to create tight trim-to-ceiling contact
- Magnetic snap-in reflectors make the final install step quick and easy
Controls-available with the Integral AirLink Blue Controller
