Two-Circuit Track System

TR 2

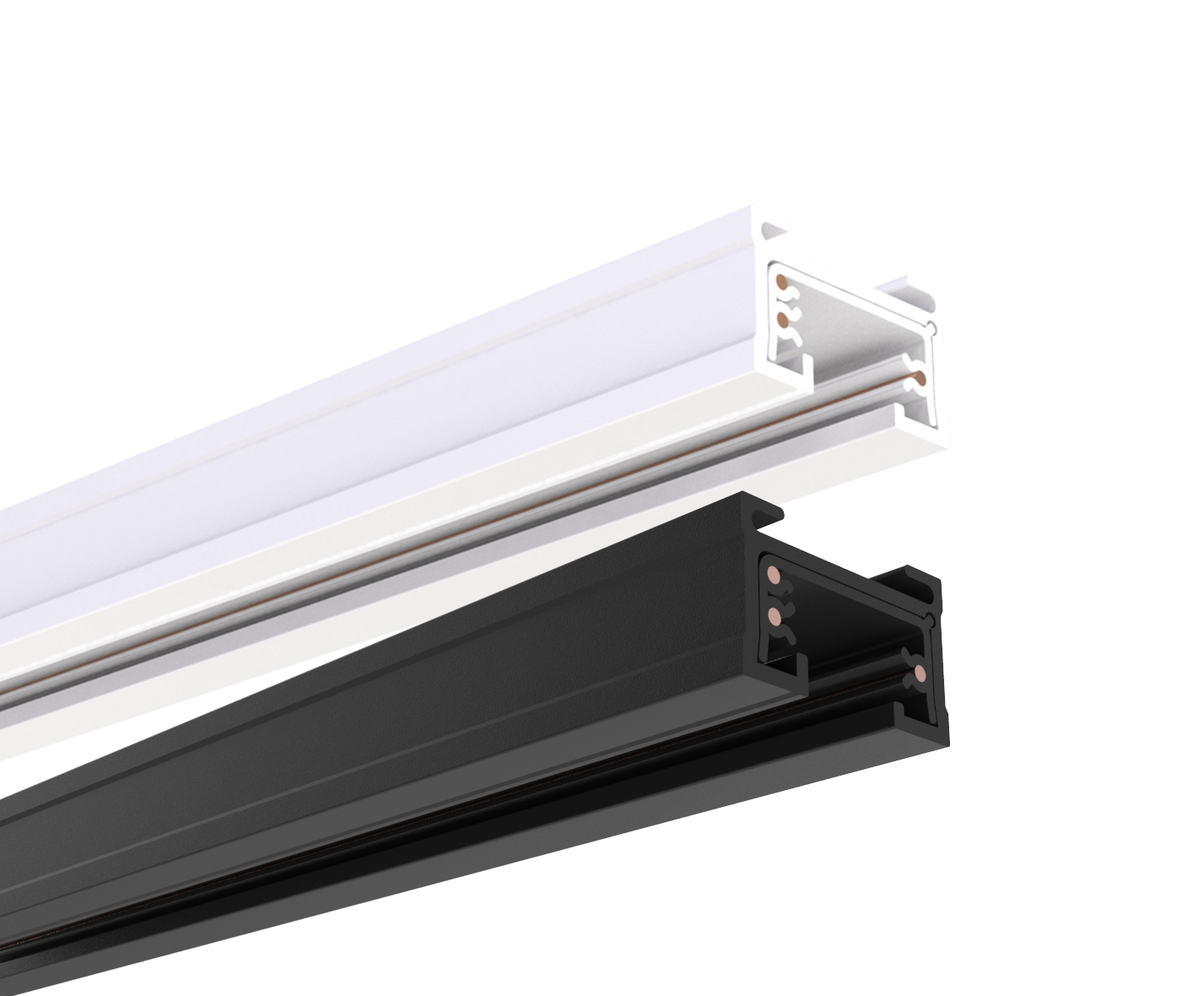

The TR 2 Two-Circuit Track System is a slim, 2-circuit/1-neutral track luminaire mounting system. Its 14 gauge extruded aluminum housing channel and solid copper conductors ensure rigidity and dependable performance in pendant and surface mounted applications.

Each track section includes two 20-amp circuits with one shared neutral from a single 120V input feed. Sections are available in 4 and 8 foot lengths and accept LSI track heads and J-type track adapters. Track sections can be paired with a range of feed and connector accessories to create unique layouts.

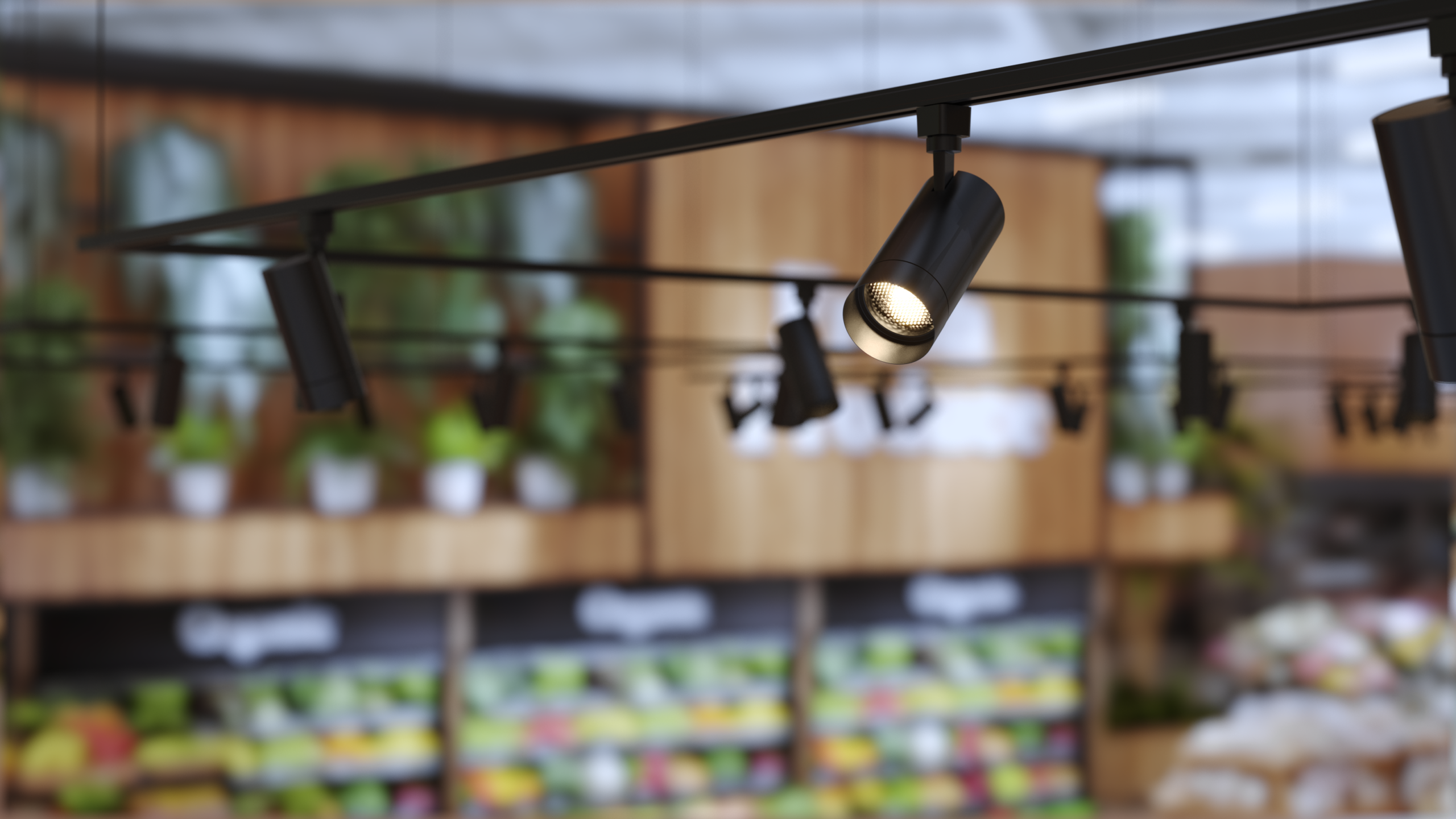

Common applications include automotive dealerships, restaurants, hotel & hospitality environments, retail, grocery, and convenience stores.

Features & Specifications

2-Circuit / 1-Neutral Track Construction
- 20A per circuit, 40A total. 2400W per circuit, 4800W total.
- 120V AC Input 50/60 Hz.
- Contains two (2) 120-Volt Hot Conductors and one (1) Common Neutral.
Track sections available in 4 and 8 foot lengths.
- Sections can be cut to desired length in field. Consult the product installation guide for details.
Accepts all LSI track heads and J-type track adapters.
