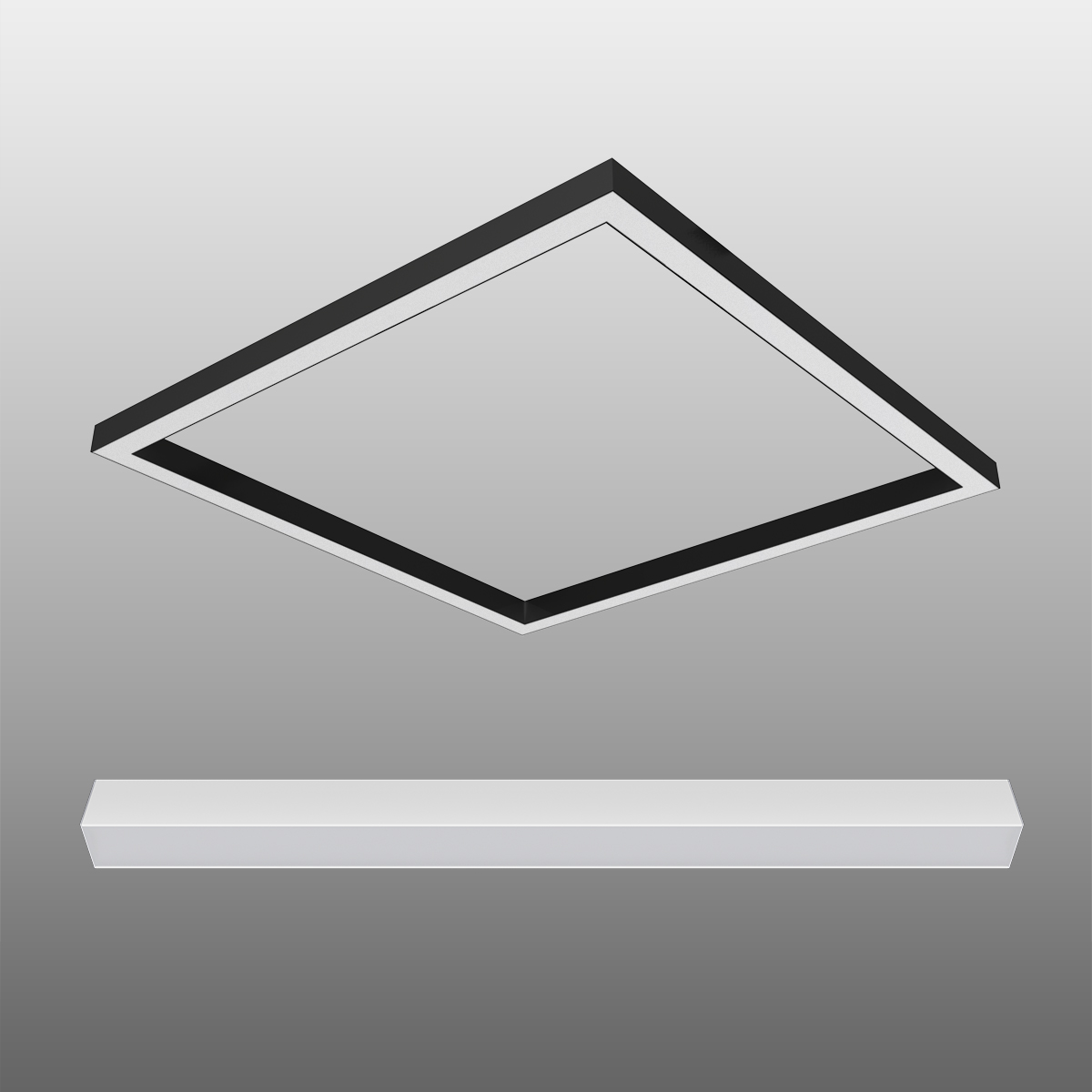

Advantage Continuous Linear – Pendant, Recessed, Surface, Wall

ACL3 Brand:

The Advantage Continuous Linear (ACL3) offers tremendous value for any commercial project. The ACL3 createsseamless continuous runs with both direct and indirect illumination to improve visual comfort. Seamless straight runs or complete rectangles provide clean aesthetics for conference rooms, hallways, open office or reception areas.

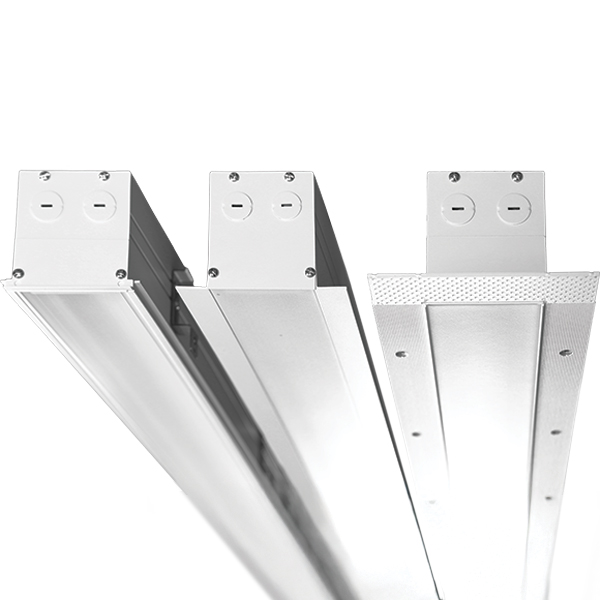

ACL3 is available in pendant cable and stem, recessed, direct to ceiling, or wall mount configurations, providing comprehensive coverage for any commercial application.

At an ultra-high color rendering index (90 CRI minimum), object colors in the space are realistically rendered for a natural feel.

A range of luminaire level lighting control (LLLC) options are offered with the ACL3 for both code compliance and energy savings. Third party controls (3PC) integration is offered for additional flexibility, where LSI luminaires are paired with other manufacturer’s controls platforms.

Custom lumen packages and finishes are available. Contact LSI Customer Service or Quotes for shop drawings or pricing information.

Features & Specifications

Max Lumens
3,300lm/ft.
Min Lumens
250lm/ft.
Life Safety Features
Integral Battery Backup 2 Circuit Wiring Generator Transfer Device
Sensors
AirLink Blue Networked IMS1 Standalone AirLink Blue Wireless Node
Color Temperatures
3000K 3500K 4000K 5000K
Additional Options
Battery BackupBluetoothCCT SelectableDimmableDLCROHS CompliantTAA CompliantUL ListedUL Listed Damp Location

Photometrics & Applications

ACL3 BIMobject® REVIT® Family
ACL3R BIMobject® REVIT® Family



Lighting Layout Request BIM (Revit) Library

Markets

Lighting Calculation Tools

Typical Room: 40′ x 40′ x 10′
Calculation Reflectances: Ceiling-80%  Walls-50%  Floor-20%
Target Value: 45fc Average
Calculations for Direct Lumens Only
