HOW TO LIGHT A FLAG

According to the U.S Flag Code, American flags must be illuminated when flown at night.

Visibility is dependent on the relative positions of the luminaire, flag, and viewer, as well as on ambient light levels and contrast ratios with respect to other objects in the field of view. These rules of thumb should result in a satisfactory installation, regardless of the many variables involved:

Always use multiple luminaires to ensure flag is adequately illuminated, regardless of wind direction. Two per flag is good and three per flag is better.
Three luminaires in a triangular pattern produce the best effect.
Inground fixtures should be setback from the pole one-third to one-half the length of the flag. Floodlights may be setback from the pole one-half to one full pole length.

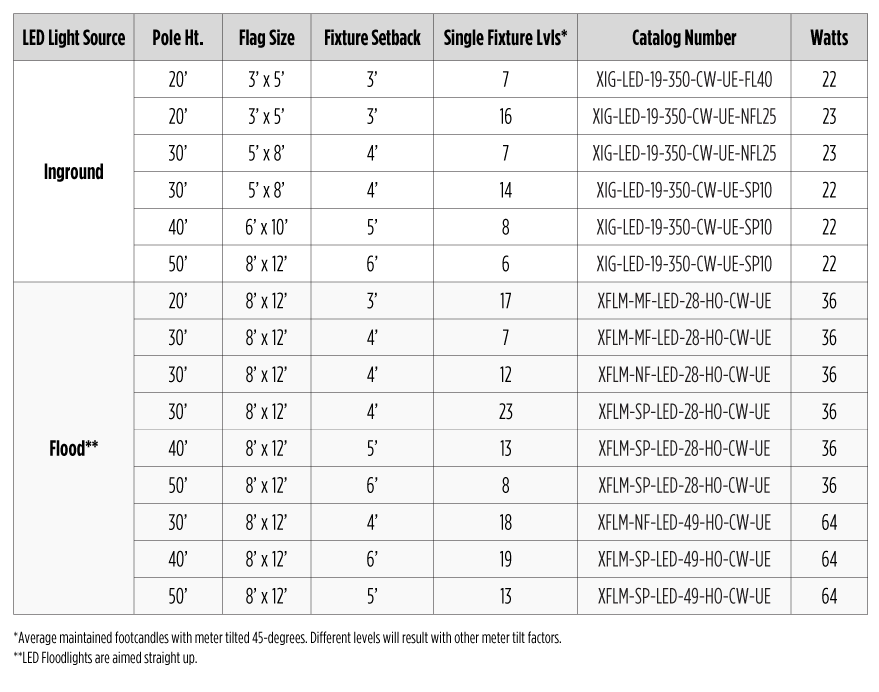

Use this table to estimate light levels for your project.

Light levels shown below are average maintained footcandles from a single luminaire. For more specific project needs, please
consult our lighting experts.

HOW TO LIGHT A FLAG

Use this table to estimate light levels for your project.

PRODUCT RECOMMENDATIONS

LSI In Grade (XIG)

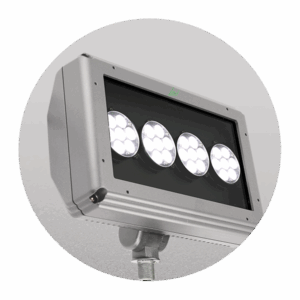

Architectural Flood (XFLM)

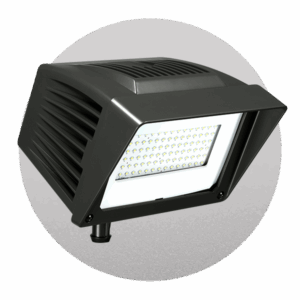

Traditional Flood (TMFL)
