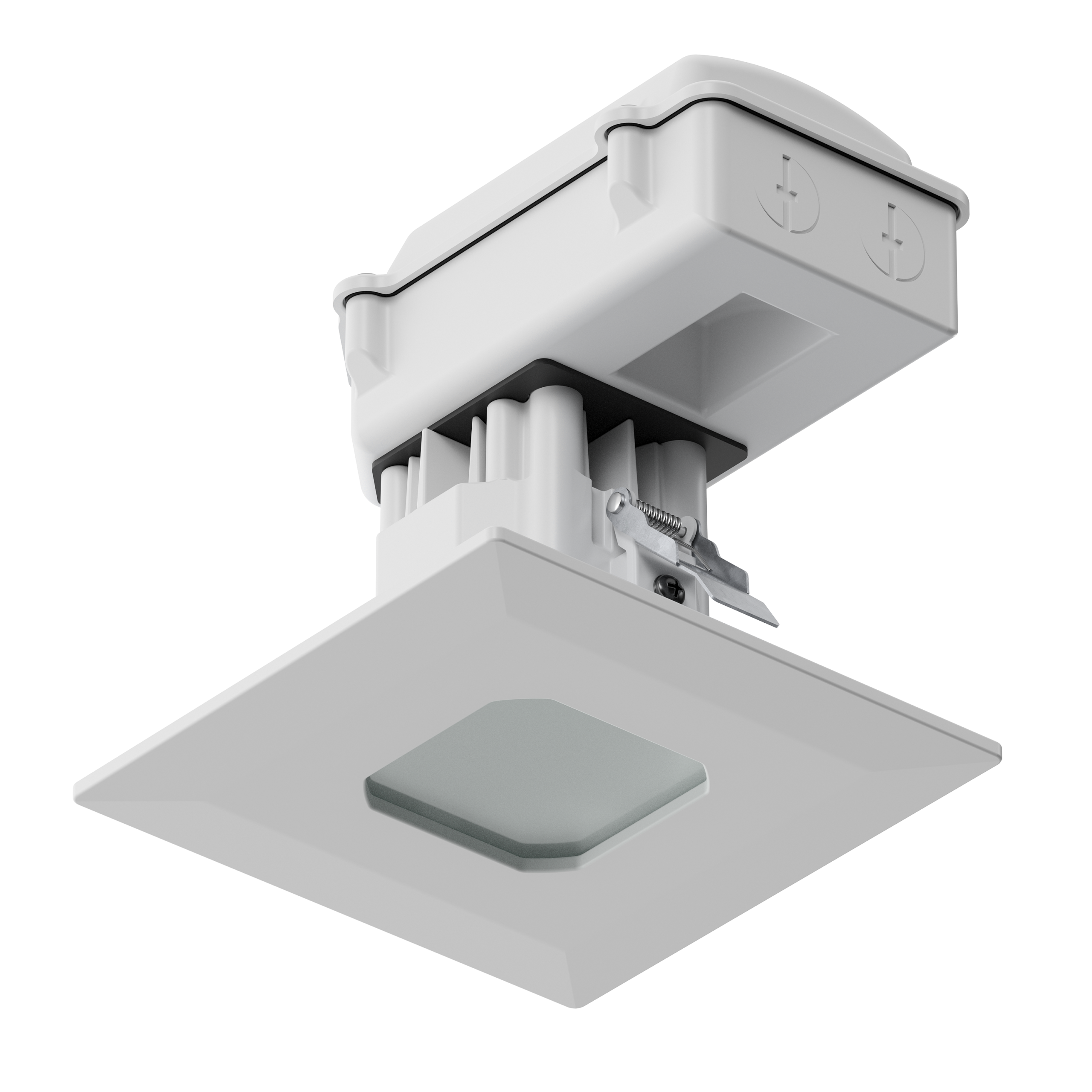

All-Weather Downlight
Weather-Proof Resilience from Above & Below

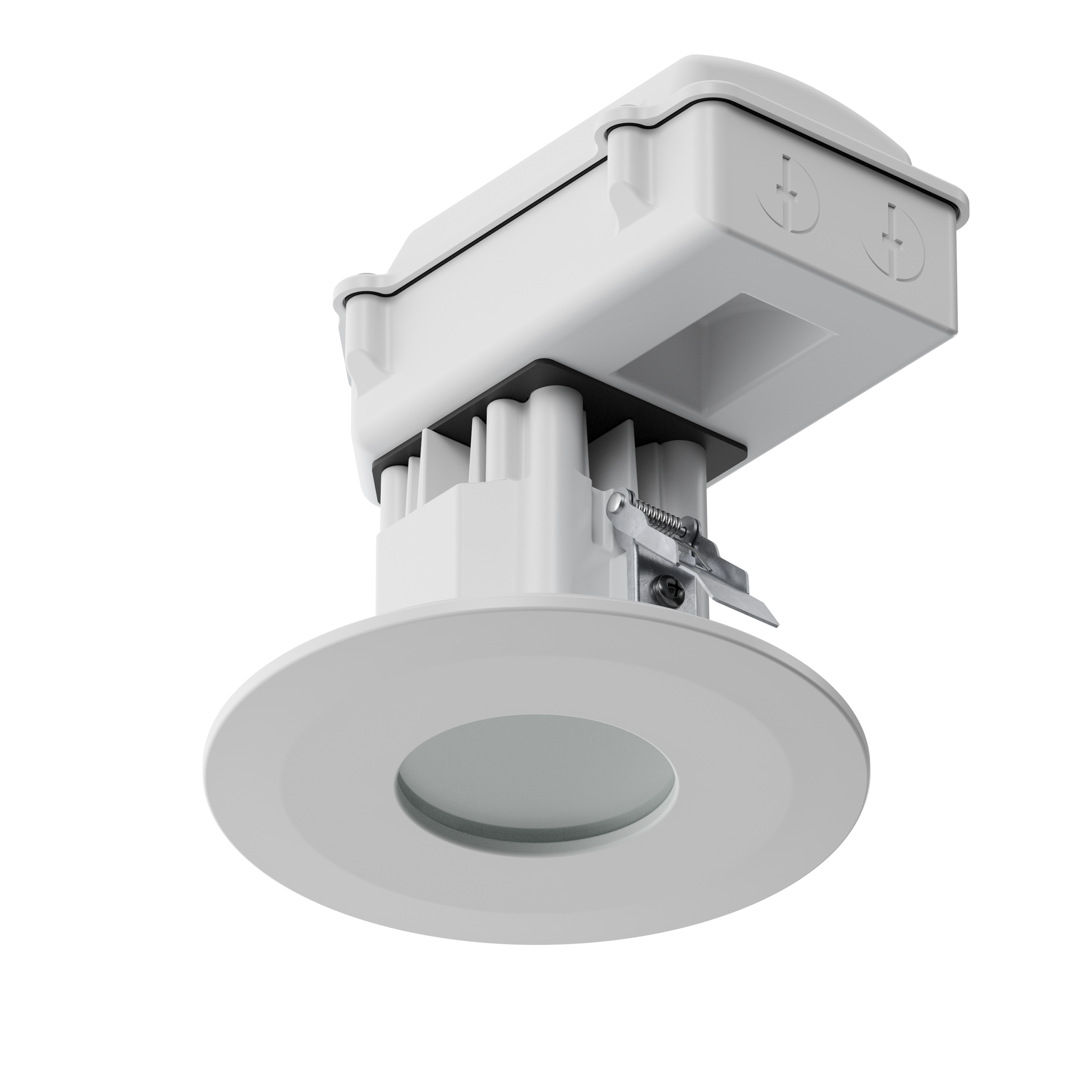

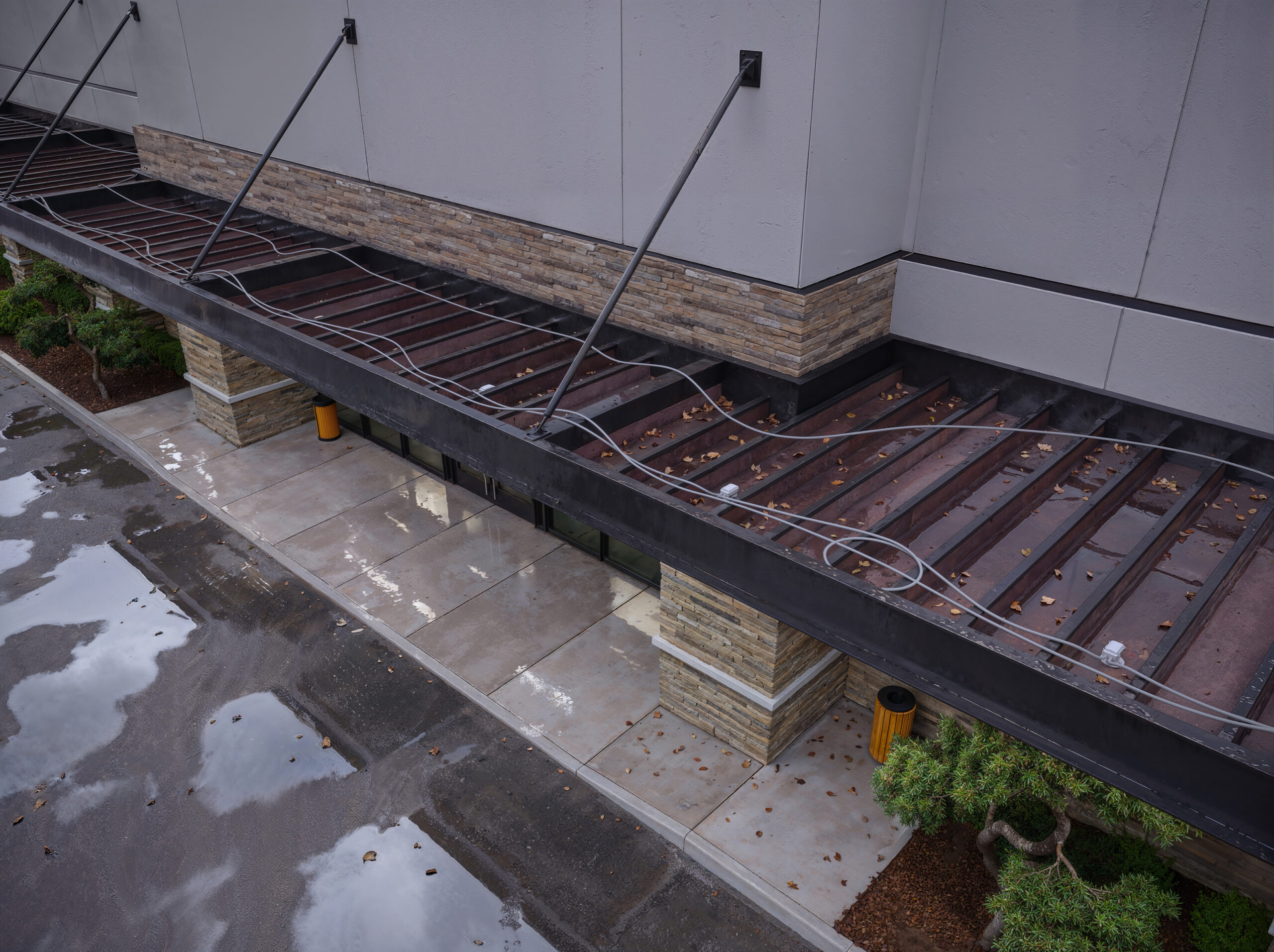

The All-Weather Downlight (SFR) is purpose-built for demanding environments – outdoor and indoor, open-top or closed-top ceilings. With a sealed IP66-rated housing and tempered glass lens, the SFR is engineered with dependability in mind.
Available in 1,000-2,200 lumen packages and with a range of trim shapes and customizable finishes, the All-Weather Downlight gives you flexibility to fit your space’s design.
Avoid the headache and constant replacement costs of inadequate fixtures. Selecting the SFR is an investment in your building and your peace of mind. It’s high efficiency additionally provides fast payback seen on every utility bill.

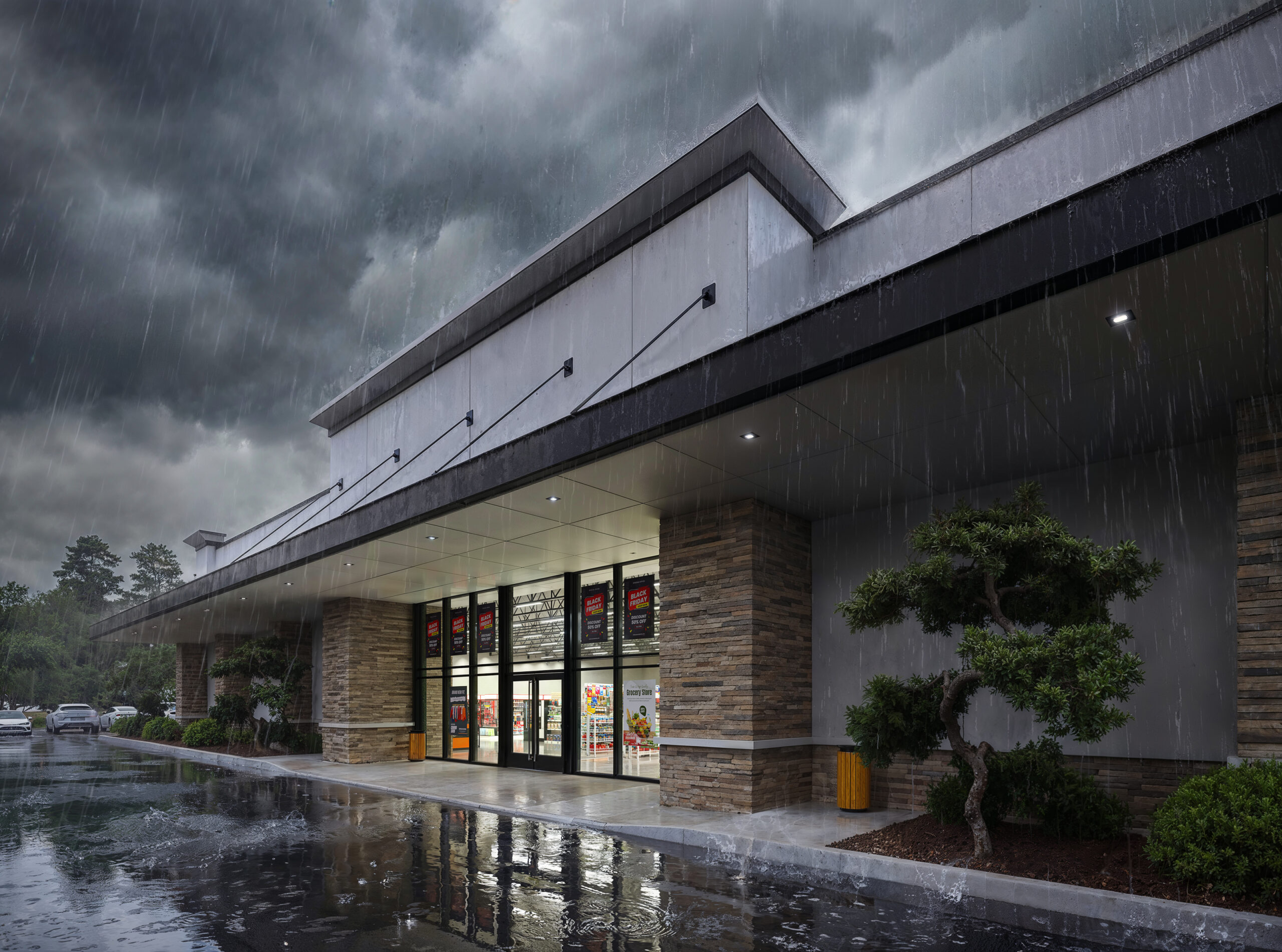

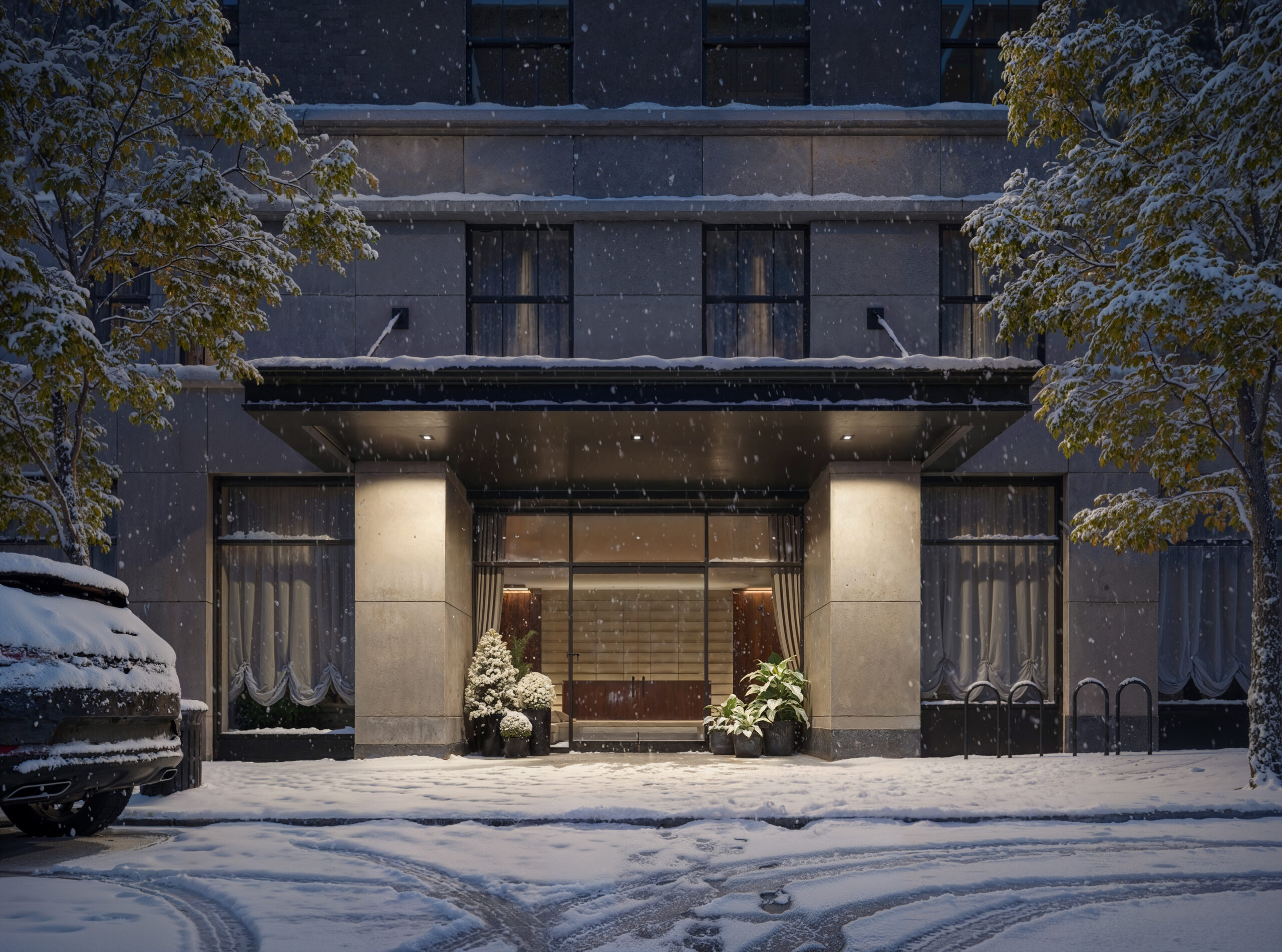

Common applications include but are not limited to retail soffits, restaurant or C-store awnings, drive-through & ATM overhangs, outdoor patios, and more.
Quick Actions
Features & Specifications
- Driver & Light Engine Protected by IP66 Factory-Sealed Housing

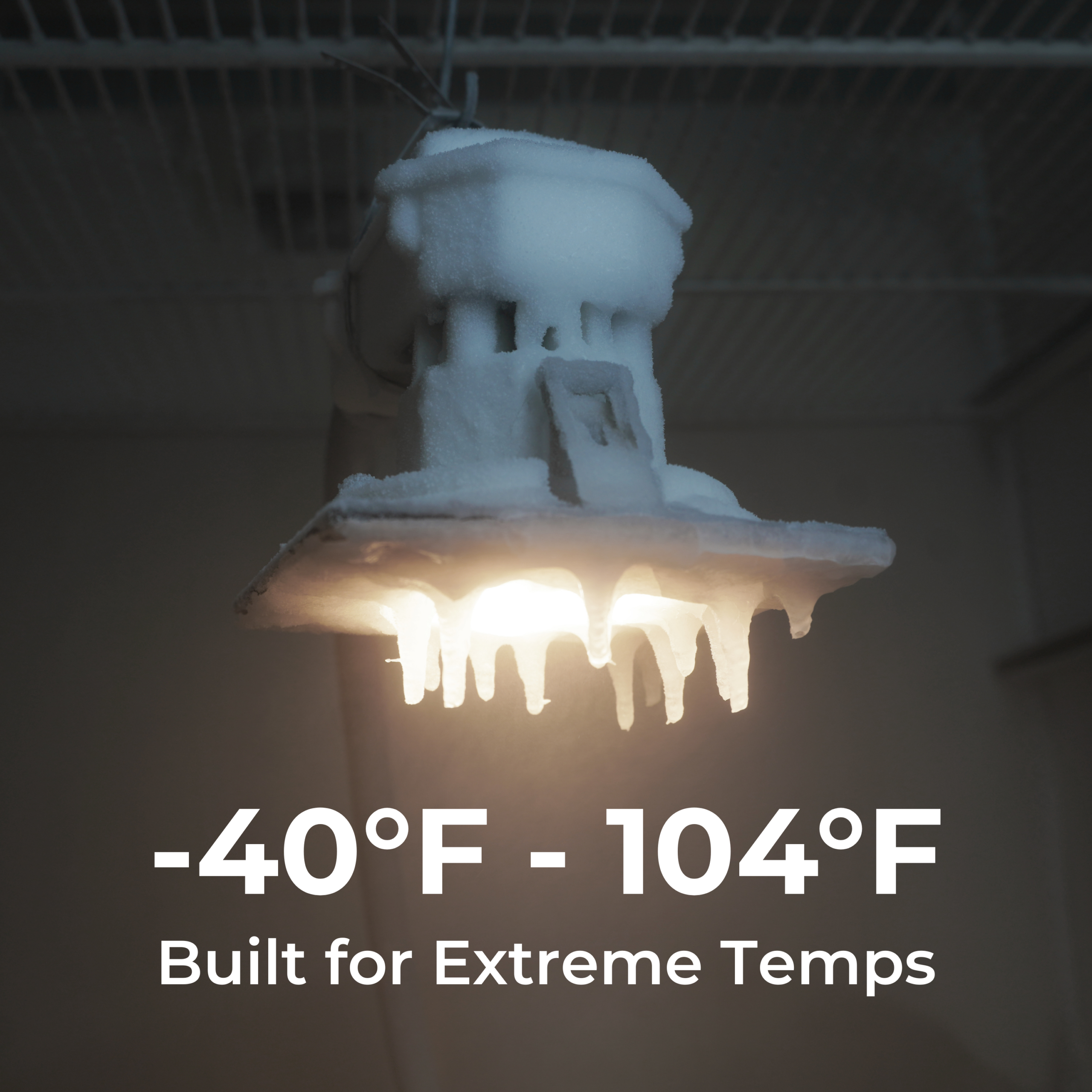

- Operating Temperatures Ranging from -40F (-40C) to 104F (40C)
- Lumen Packages up to 2,200lm
- Premium Diffused Tempered Glass Lens
- 0-10V Dimming Standard

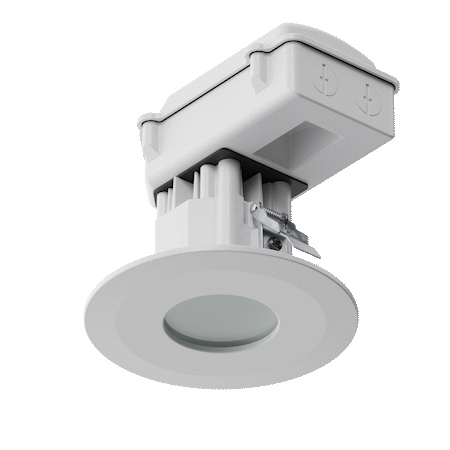

- Multiple Trim Options Available

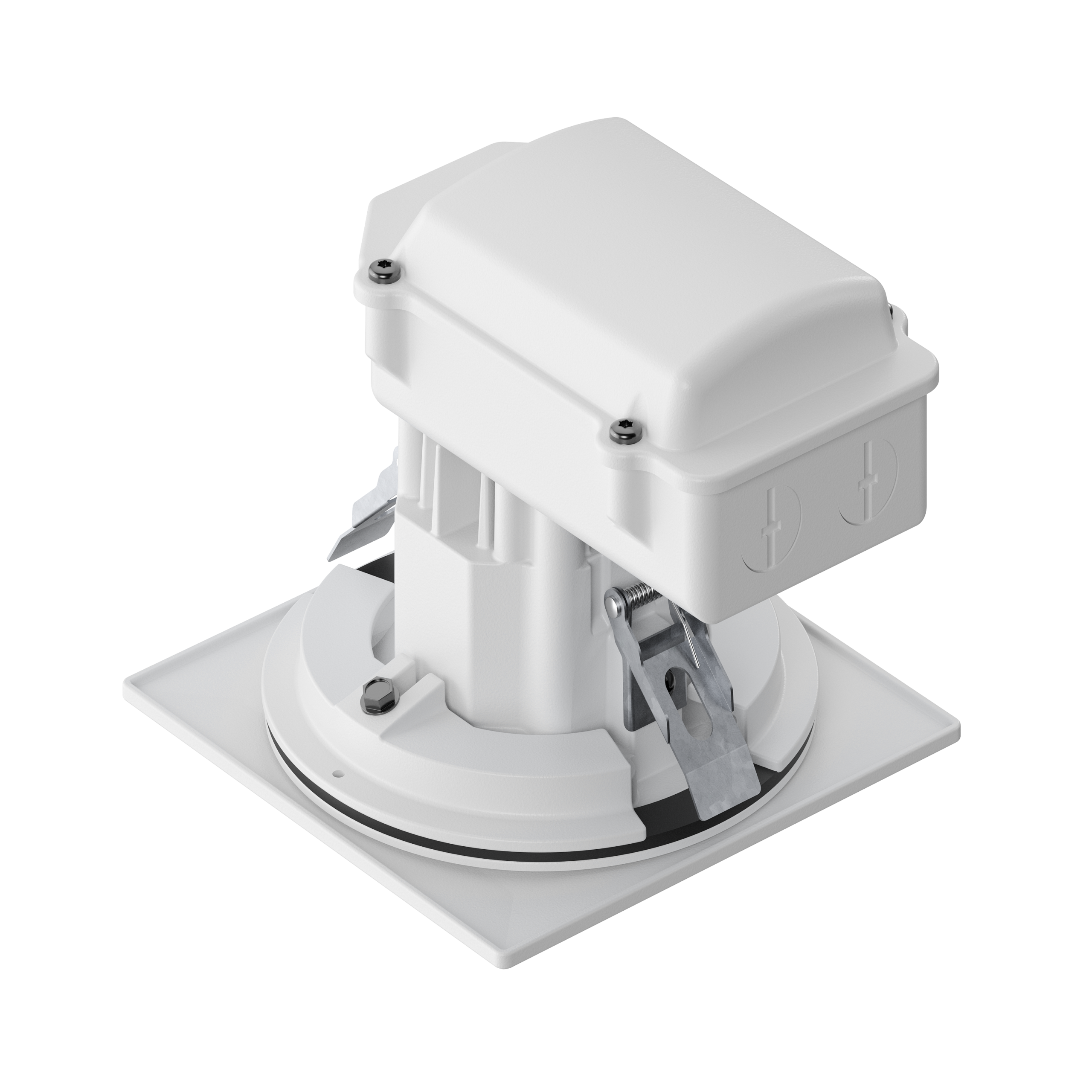

- 4.5″ Round & Square
- White, Black, Bronze or Custom Finishes
- Installer-Friendly Mounting Features

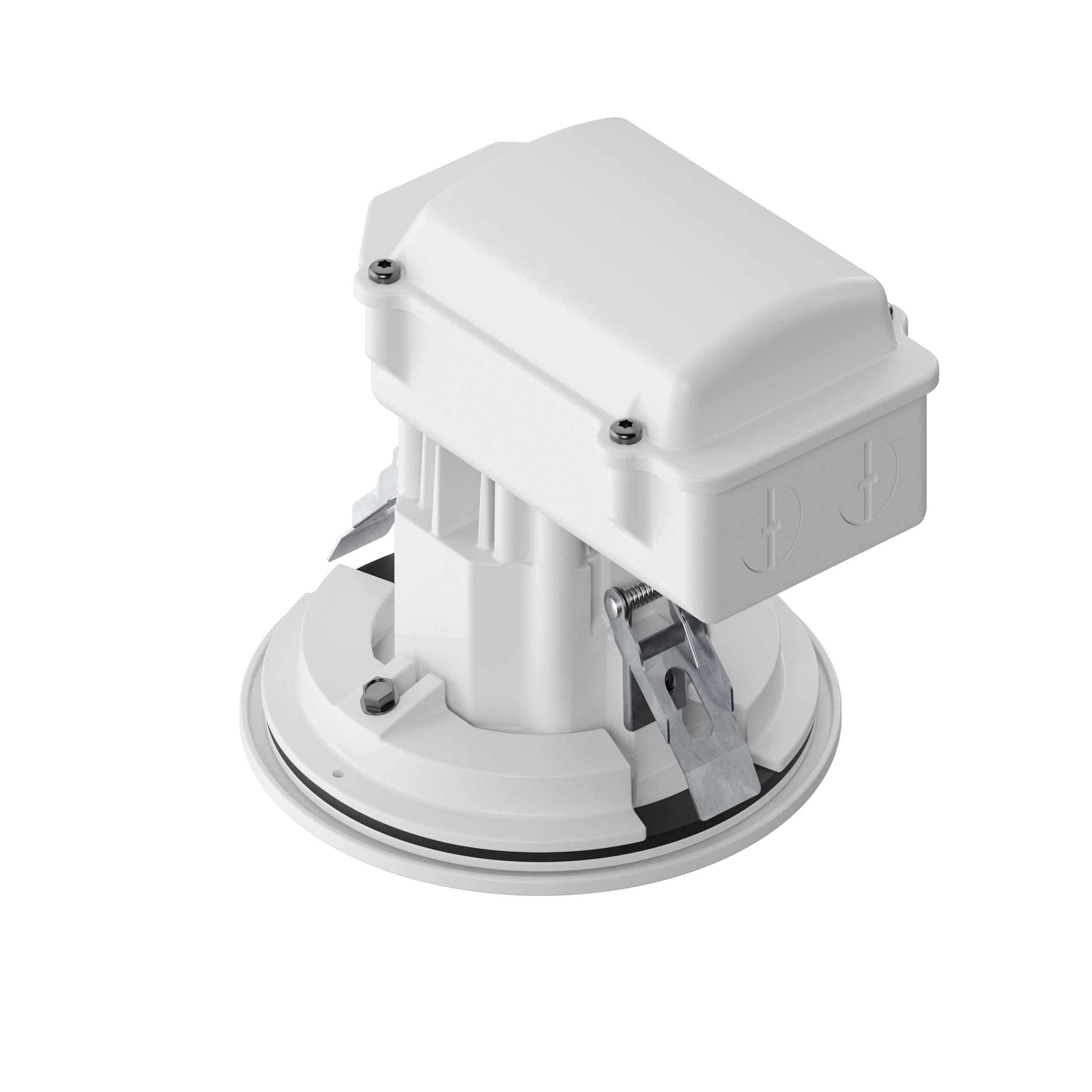

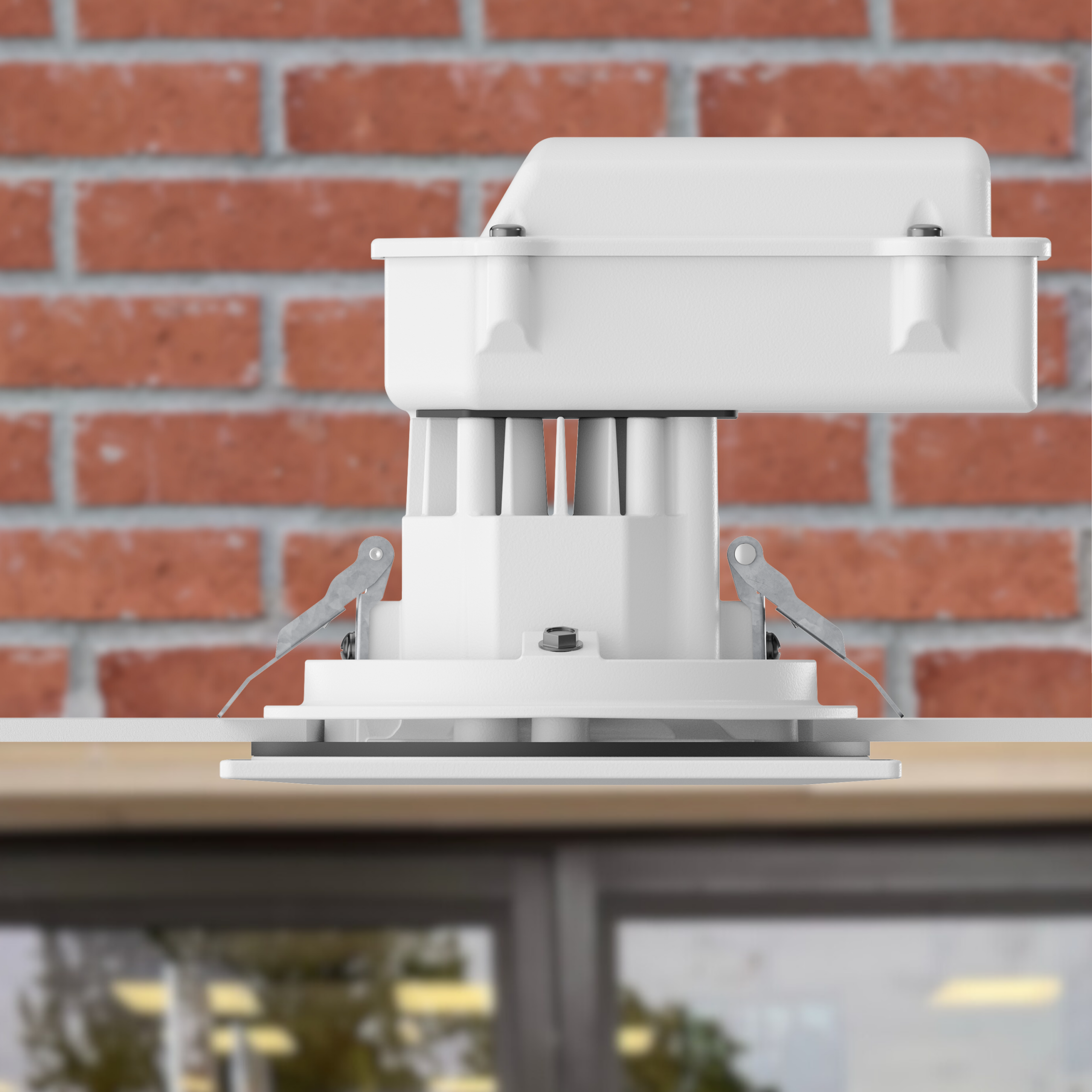

- High-Tension Spring Clips, Gasketed Ceiling Trim & Topside Locking Collars
Max Lumens
2,200Min Lumens
1,000Life Safety Features
8W & 25W Remote Mount BatteryColor Temperatures
3000K 4000K 5000KAdditional Options
Resources & Downloads
Photometrics & Applications
Markets
- Automotive
- Commercial
- Grocery
- Petroleum
- Restaurants
- Retail
Lighting Calculation Tools
Typical Vestibule: 10′ x 10′ x 10′
Calculation Reflectances: Ceiling-80%Â Walls-50%Â Floor-20%
Target Value: 35fc Average @ 2.5′
Typical Soffit Area: 10′ x 5′ x 20′
Calculation Reflectances: Ceiling-35%Â Walls-0%Â Floor-0%
Target Value: 20fc Average @ Grade
