Small Cylinder Track Head

STRB30

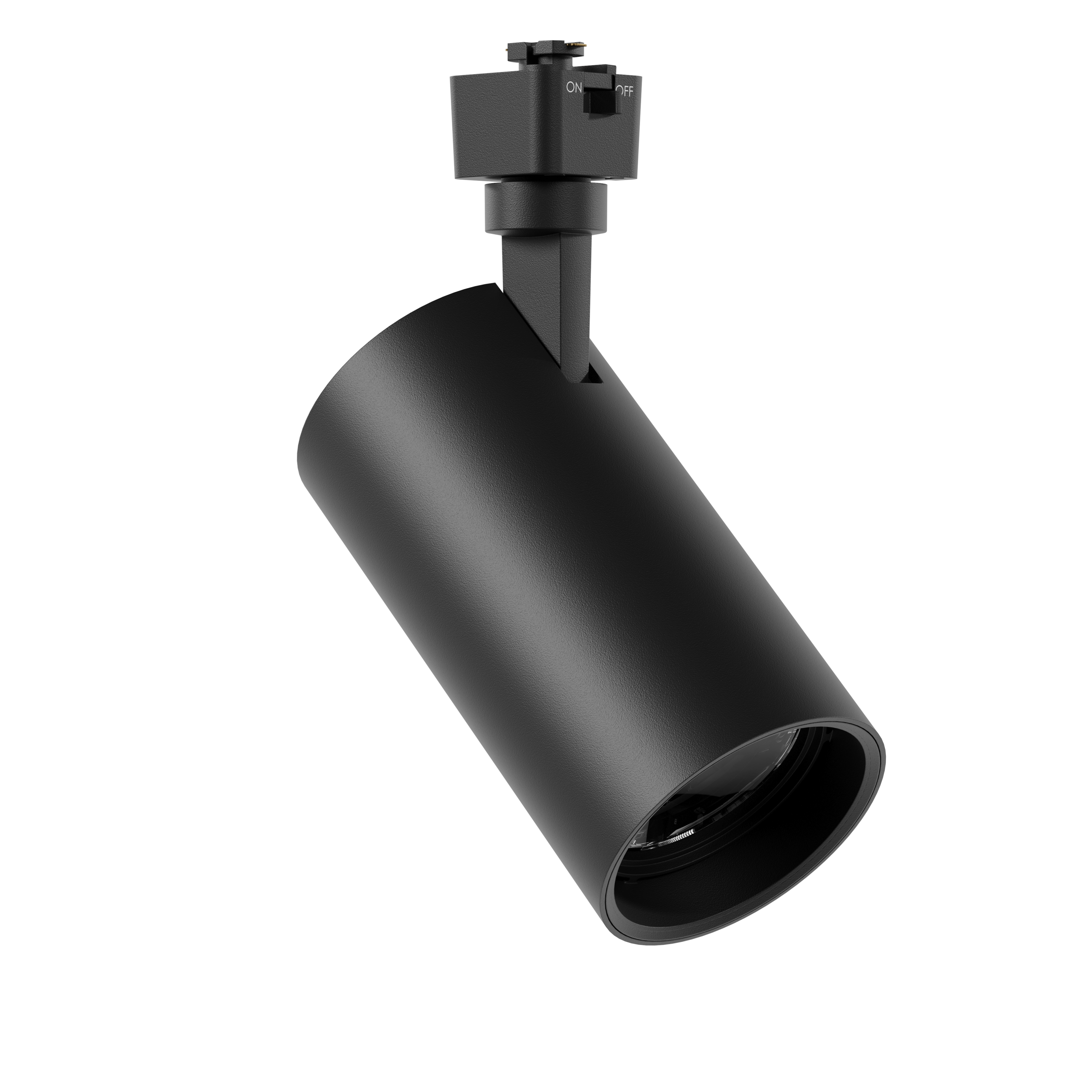

The STRB30 Small Cylinder Track Head offers a spec grade track lighting solution for the most demanding retail applications. With a slim housing, 3″ diameter, and fixed output performance, the STRB30 blends into retail environments while highlighting the most important aspects of each space.

The fixed 27° Flood beam angle provides smooth, even illumination at a range of mounting heights. Paired with color rendering options of 80 & 90CRI and smooth Leading/Trailing Edge dimming, the STRB30 creates dramatic scenes to enhance the occupant experience.

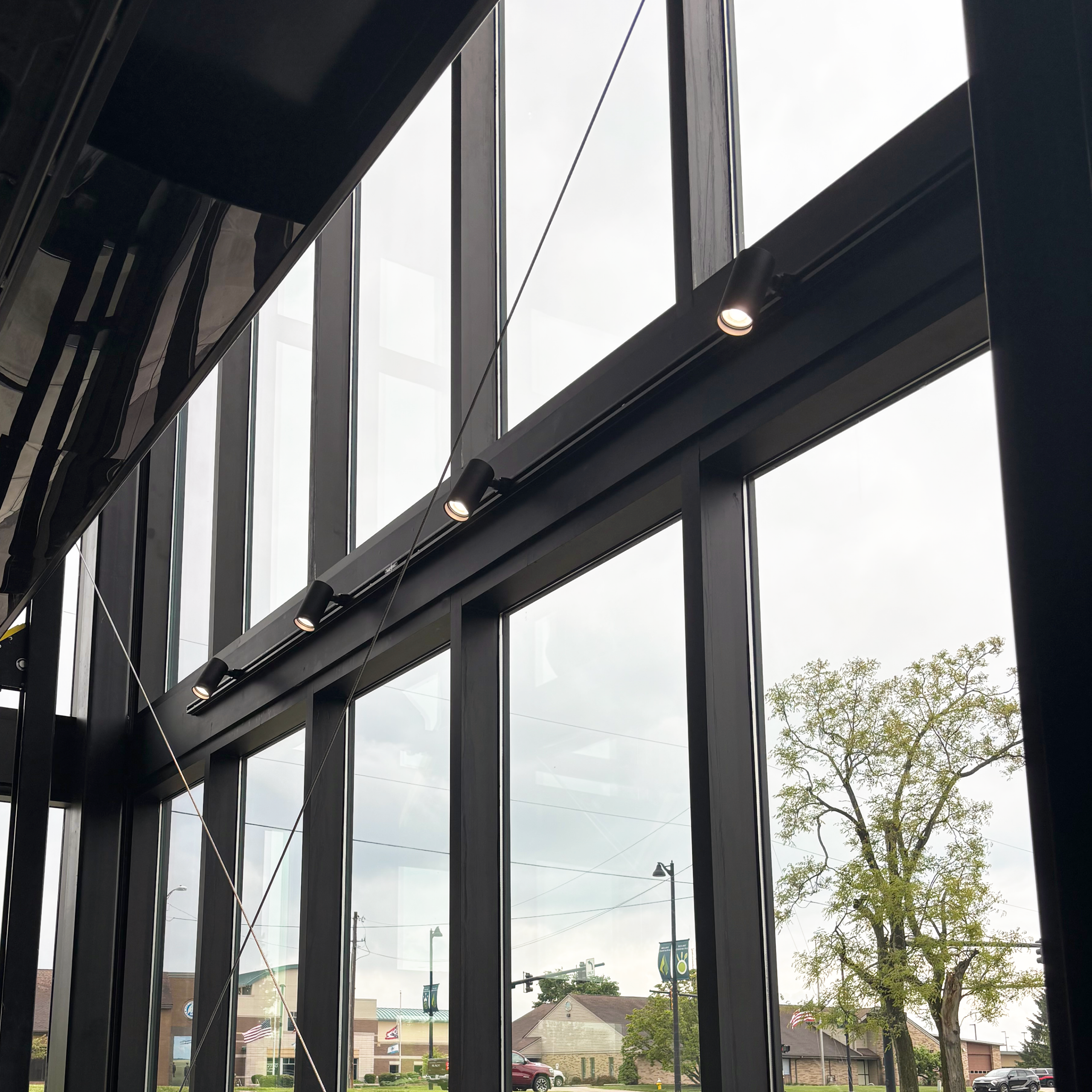

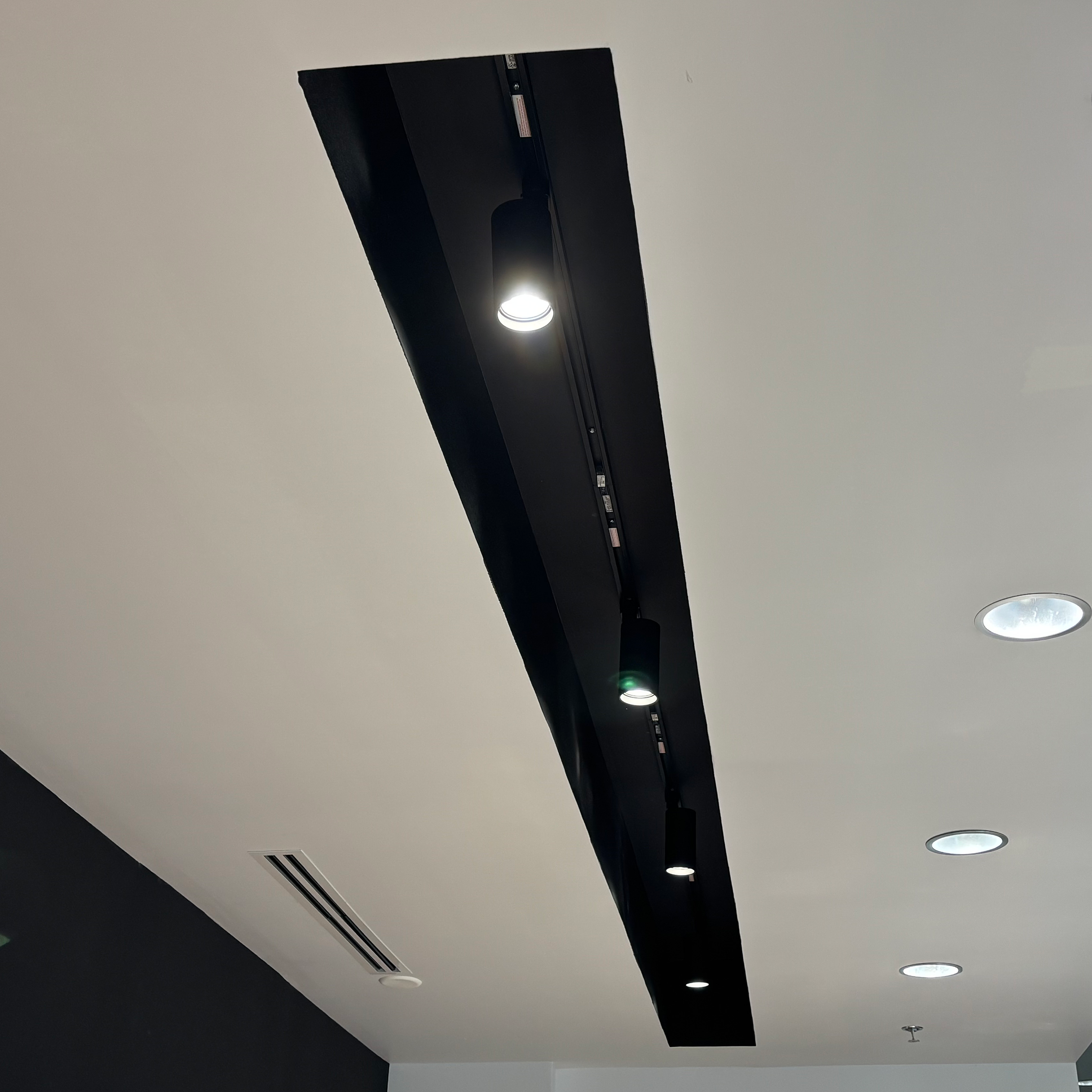

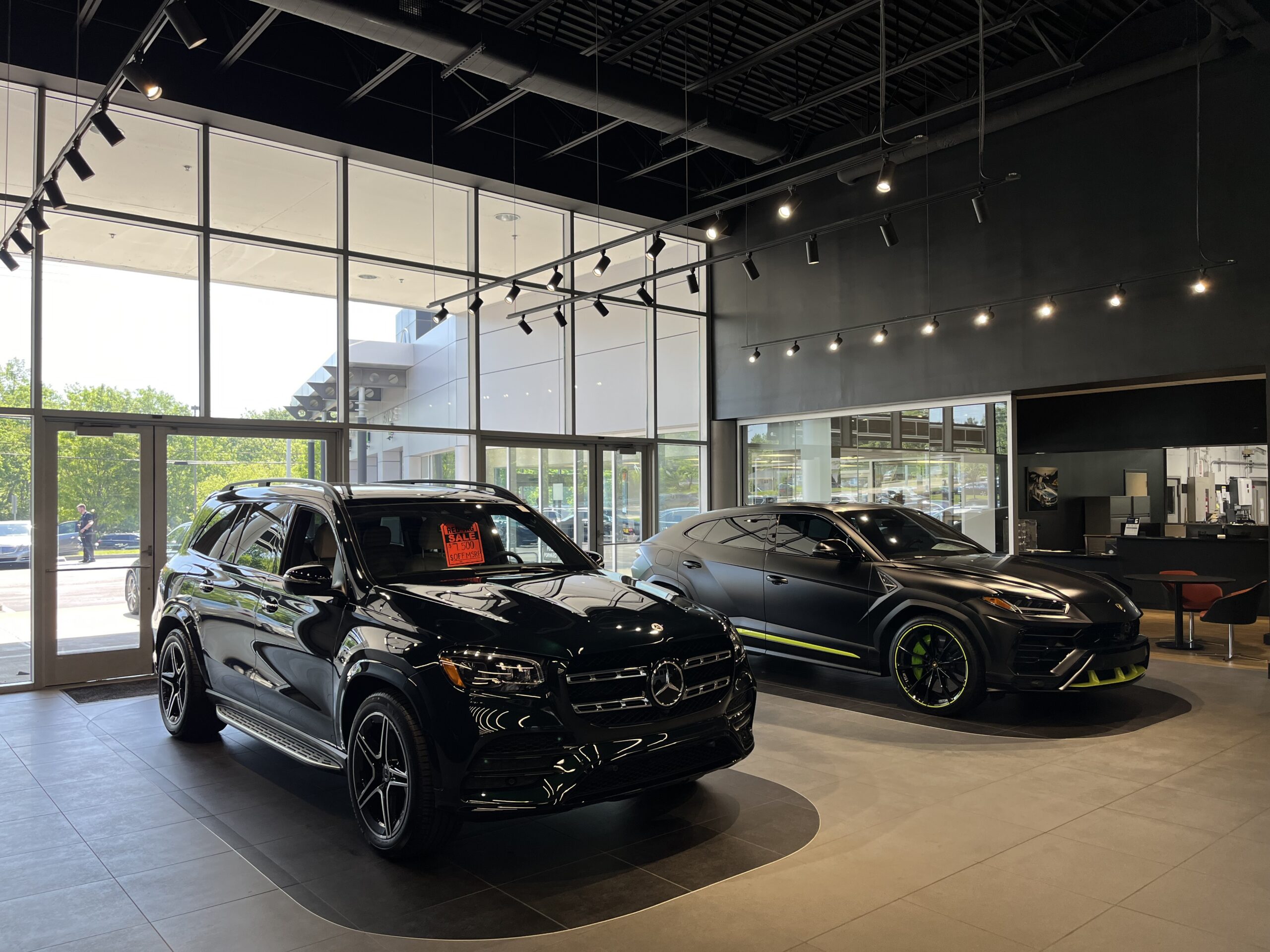

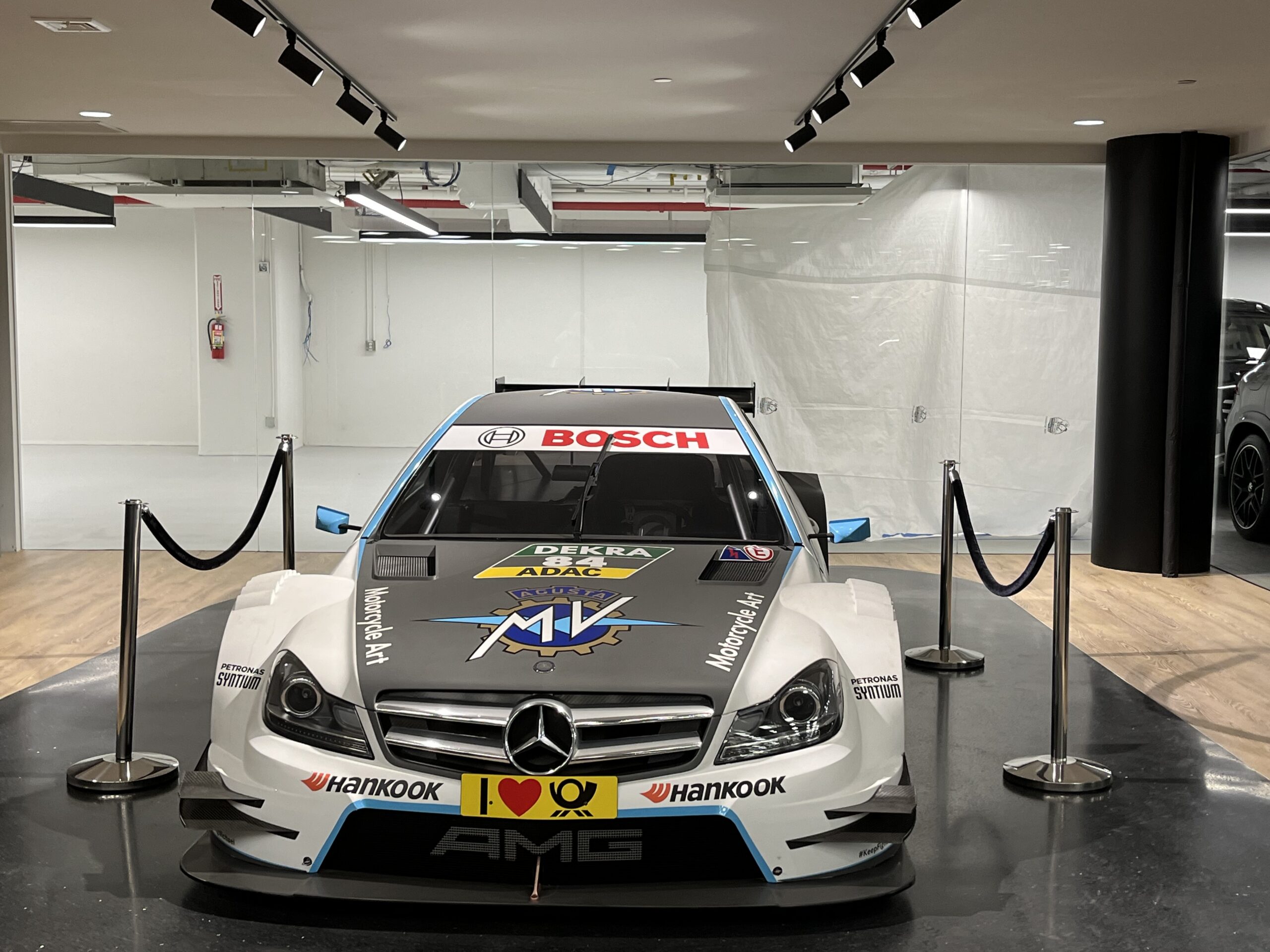

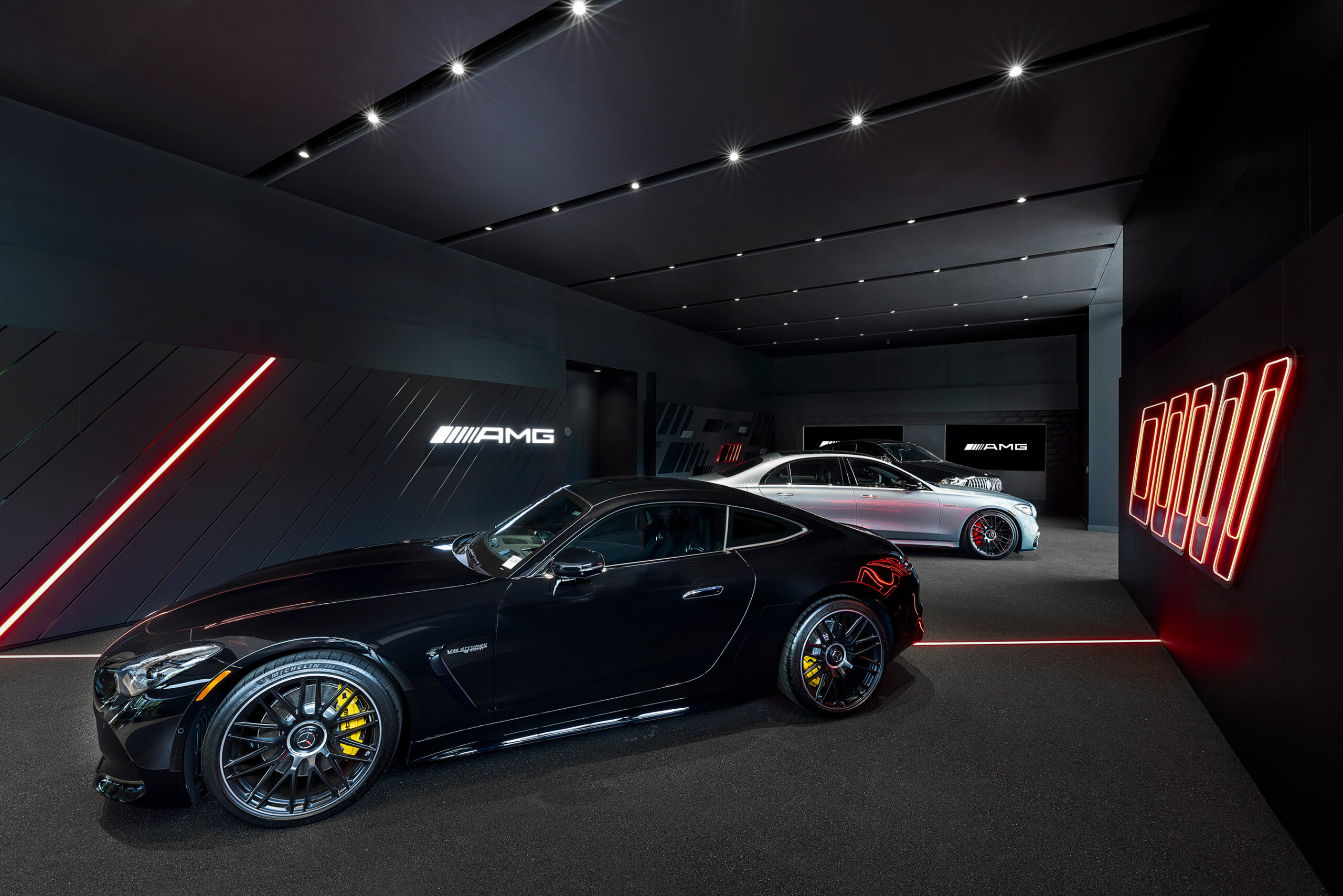

Common applications include automotive dealerships, restaurants, hotel & hospitality environments, retail, grocery, and convenience stores.

Quick Actions

Features & Specifications

  • Compatible with LSI’s Two-Circuit (TR 2) Track System & J-Type Track Systems.
  • Precision directional aiming adjustment. 355° horizontal rotation, 90° vertical rotation.
  • Minimum color rendering index of 80 CRI standard. 90 CRI available for high visual acuity.
  • Leading/Trailing Edge TRIAC Dimming Standard (2 – 100%).
  • Integral ON/OFF switch and track polarity indicator. Alignment guides ensure proper alignment between tracks.
  • ETL/cETLus Listed. Suitible for Dry and Damp Locations.
Max Lumens
2,300
Color Temperatures
4000
Additional Options
DimmableUL Listed Damp Location

Photometrics & Applications

Lighting Layout Request BIM (Revit) Library

Markets

  • Automotive
  • Commercial
  • Grocery
  • Restaurants
  • Retail
