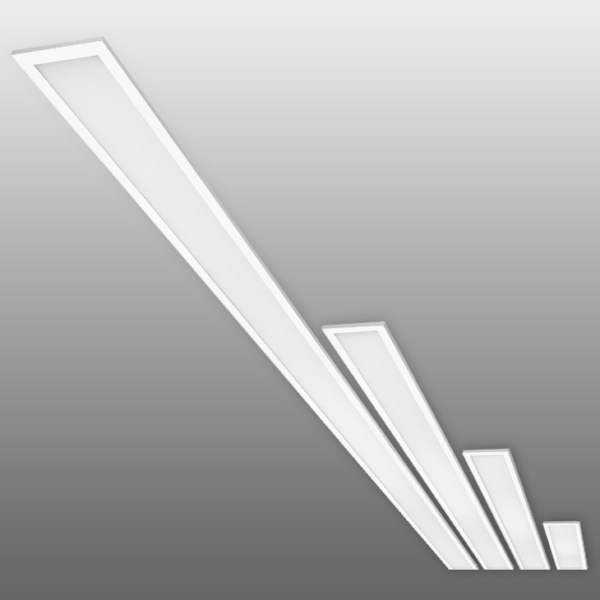

Advantage Linear

ALN

Advantage Linear (ALN) is an affordable, contractor-friendly linear offering that is purpose built to simplify installation and maintenance.  With an overall profile under half an inch, Advantage Linear is ideal for shallow plenum installations in both renovation and new construction projects. With integrated field selectability, CCT and lumen output settings can be changed at any time with the flick of a switch. This provides tremendous flexibility to both installers and end users. ALN provides a refined look and can upgrade any space with uniform, diffuse luminance while meeting tight budgets and timelines.  The quick-ship ready ALN provides light outputs up to 7,800 lumens and is available in 2ft., 4ft., 6ft., and 8ft. lengths.

While ALN is undoubtedly the most affordable linear in its class, it covers a broad range of mounting options including recessed, surface, stem or cable suspension. Advantage Linear is available with LSI’s tried and tested AirLink Blue Controls which ensure compliance to the latest building codes and provide additional energy savings. The integral AirLink Blue controller (ALBC option) interfaces with other AirLink Blue components such as motion or daylight harvesting sensors to create layered energy savings and maximize the return on investment.

Options for ALN include factory-integrated or remote battery backup for standby lighting and various mounting accessories. ALN is UL listed for 120-347V AC input and is DLC qualified for state and utility rebates where applicable.

Ask a Question

Features & Specifications



Max Lumens
9,200
Min Lumens
1,200
Life Safety Features
Integral Battery Remote Battery
Sensors
AirLink Blue
Color Temperatures
3500K 4000K 5000K
Additional Options
Battery BackupBluetoothDLCUL ListedUL Listed Damp Location

Photometrics & Applications

ALN BIMobject® REVIT® Family



Lighting Layout Request BIM (Revit) Library

Markets

Lighting Calculation Tools

Typical Room: 40′ x 40′ x 10′
Calculation Reflectances: Ceiling-80%  Walls-50%  Floor-20%
Target Value: 45fc Average
