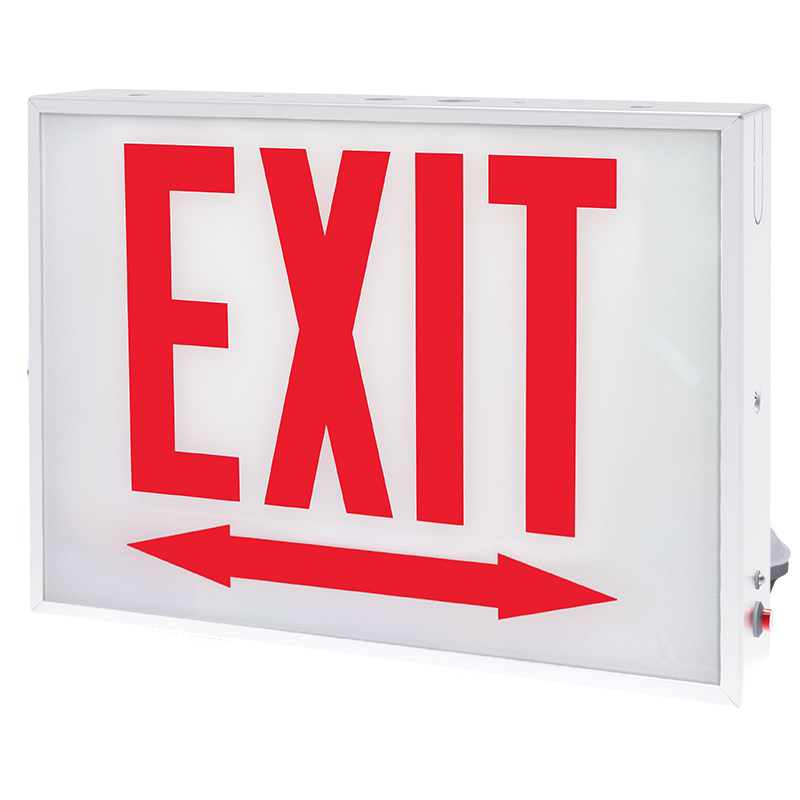

Chicago Rated Exit Sign
The Chicago Rated LED Exit Sign (CREX) by LSI is engineered to meet the strict City of Chicago egress requirements.
Its durable 20-gauge steel housing with a white powder-coated finish and heat-tempered glass panels stands up to demanding, high-traffic environments, while long-life, high-intensity white LEDs illuminate crisp 6″ red characters for maximum visibility. A maintenance-free LiFePO4 battery delivers 90-minute emergency runtime, with an optional 3W remote capacity to power additional lamp heads, plus low voltage disconnect and brownout protection for added reliability.
Backed by LSI’s 5-year limited warranty, the CREX offers rugged, code-compliant emergency egress lighting for retail, commercial, education, transit, and other high-occupancy facilities.
Quick Actions
Available Variations
Features & Specifications
- Meets City of Chicago egress requirements, plus UL 924 Damp Location, NFPA 101, and NEC standards.
- Illuminated by long-life, high intensity white LEDs behind 6″ red characters with 3/4″ stroke.
- Durable 20 Gauge steel housing with a white powder coated finish.
- Heat-tempered, impact- and scratch-resistant glass panels with red silkscreened lettering on white finish.
- Flexible mounting: ceiling, end, wall, and pendant (knockouts included on top).
- Maintenance-free LiFePO4 battery with low voltage disconnect and brownout protection.
- Optional 3W remote capacity supports one additional double lamp head or two single lamp heads.
- UL Listed 90 minute emergency run time, 24 hour recharge time.
Resources & Downloads
Spec Sheets
Photometrics & Applications
Markets
- Automotive
- Commercial
- Grocery
- Parking
- Petroleum
- Restaurants
- Retail
- Sports
