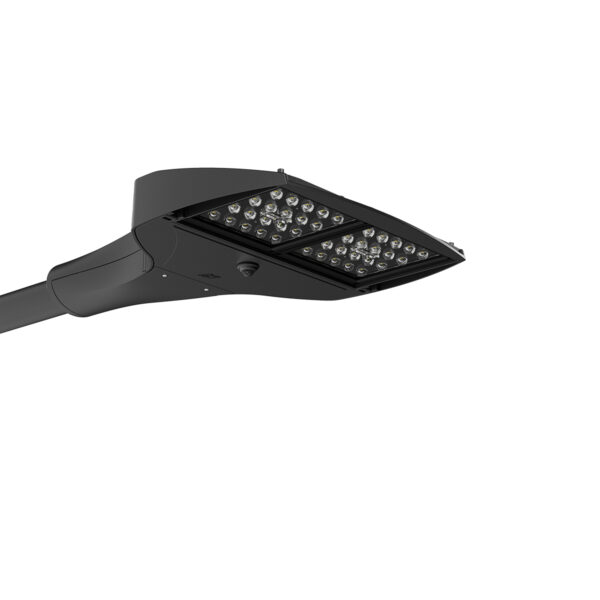

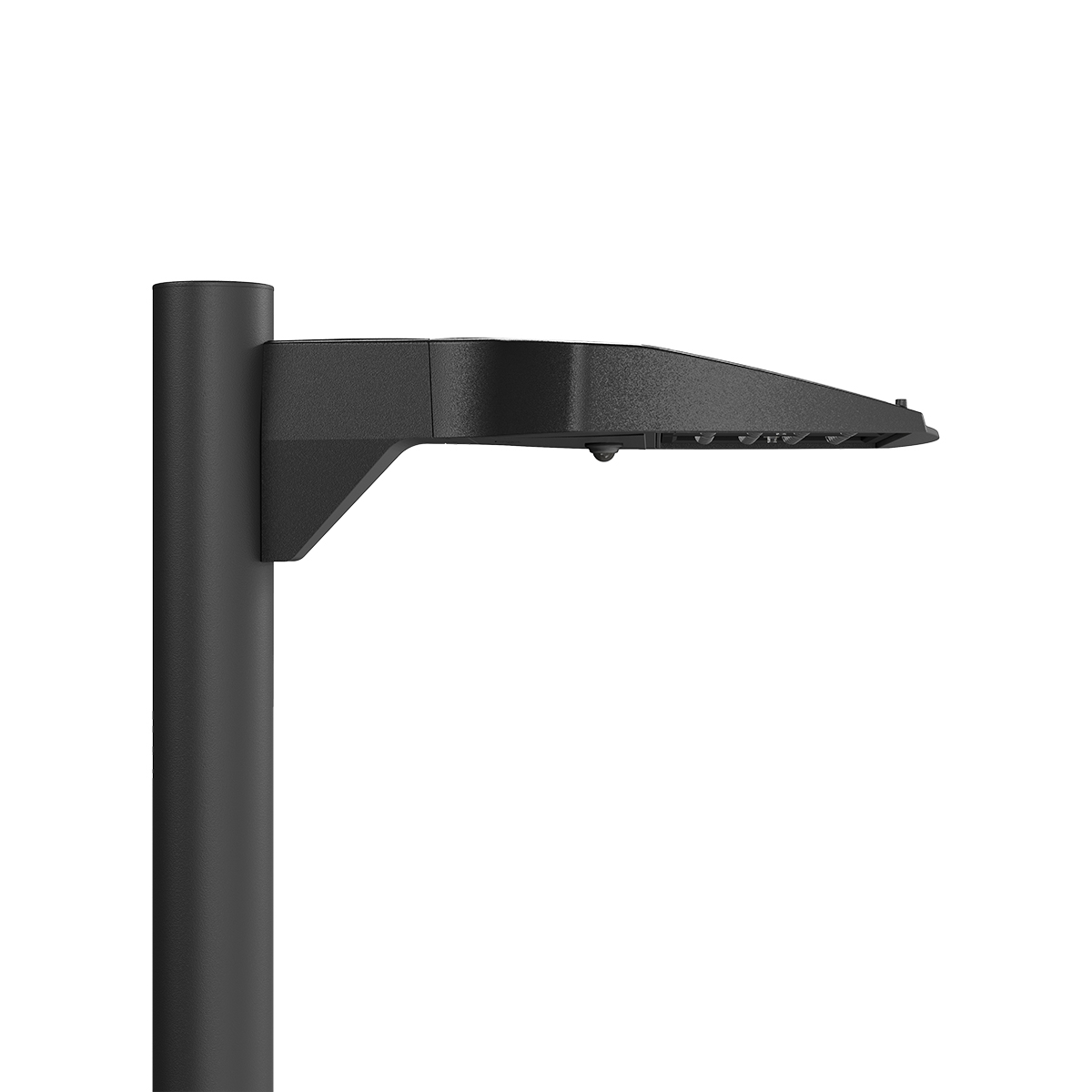

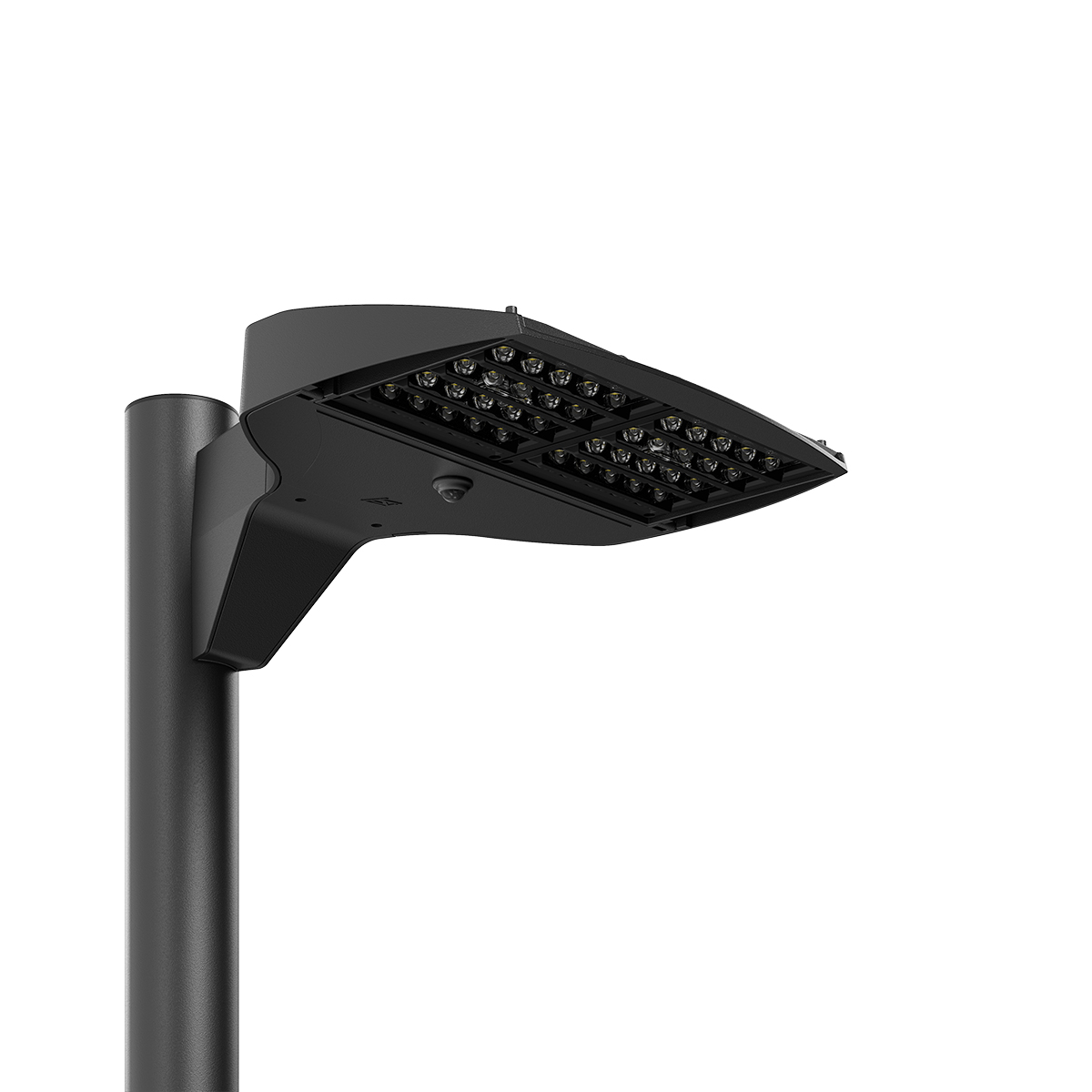

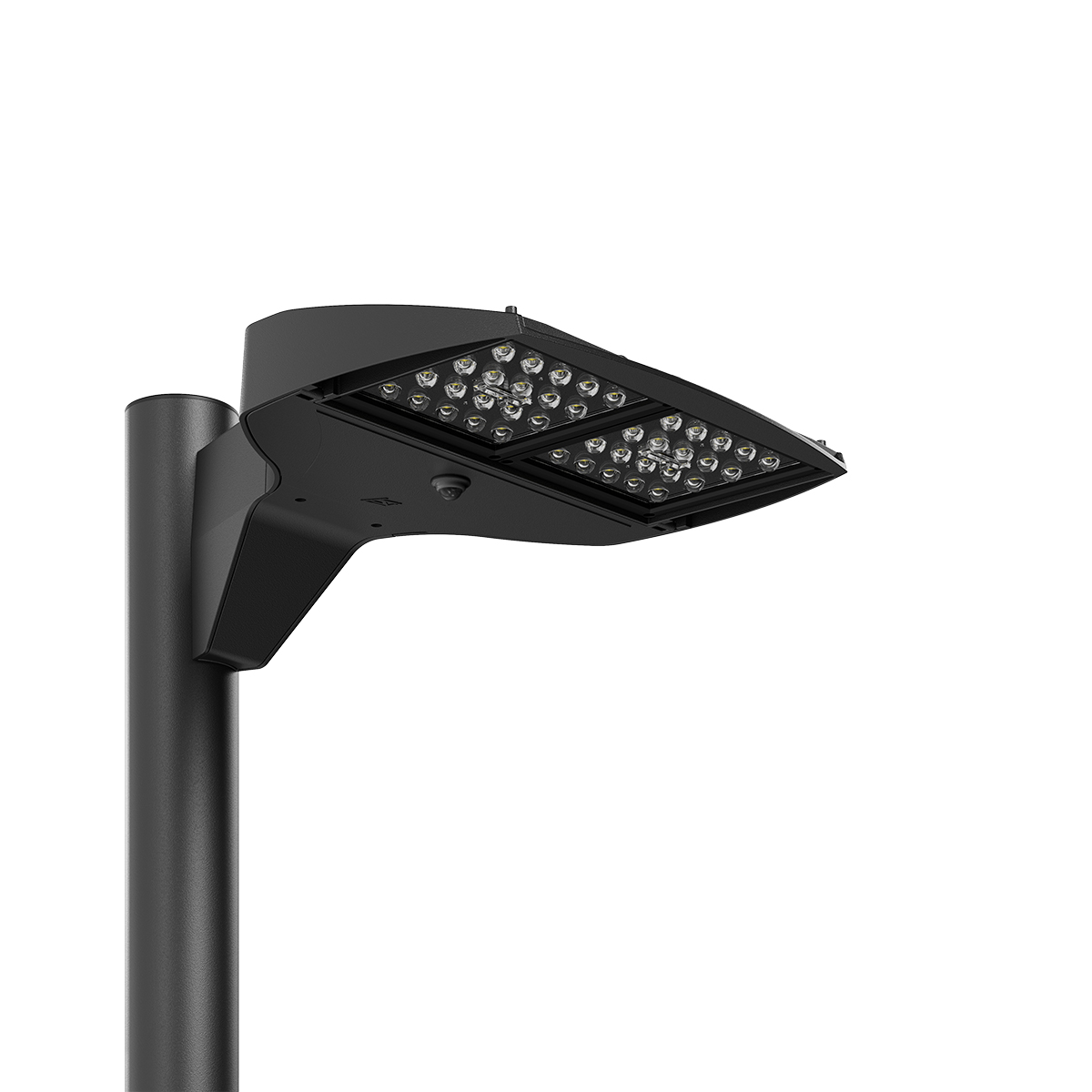

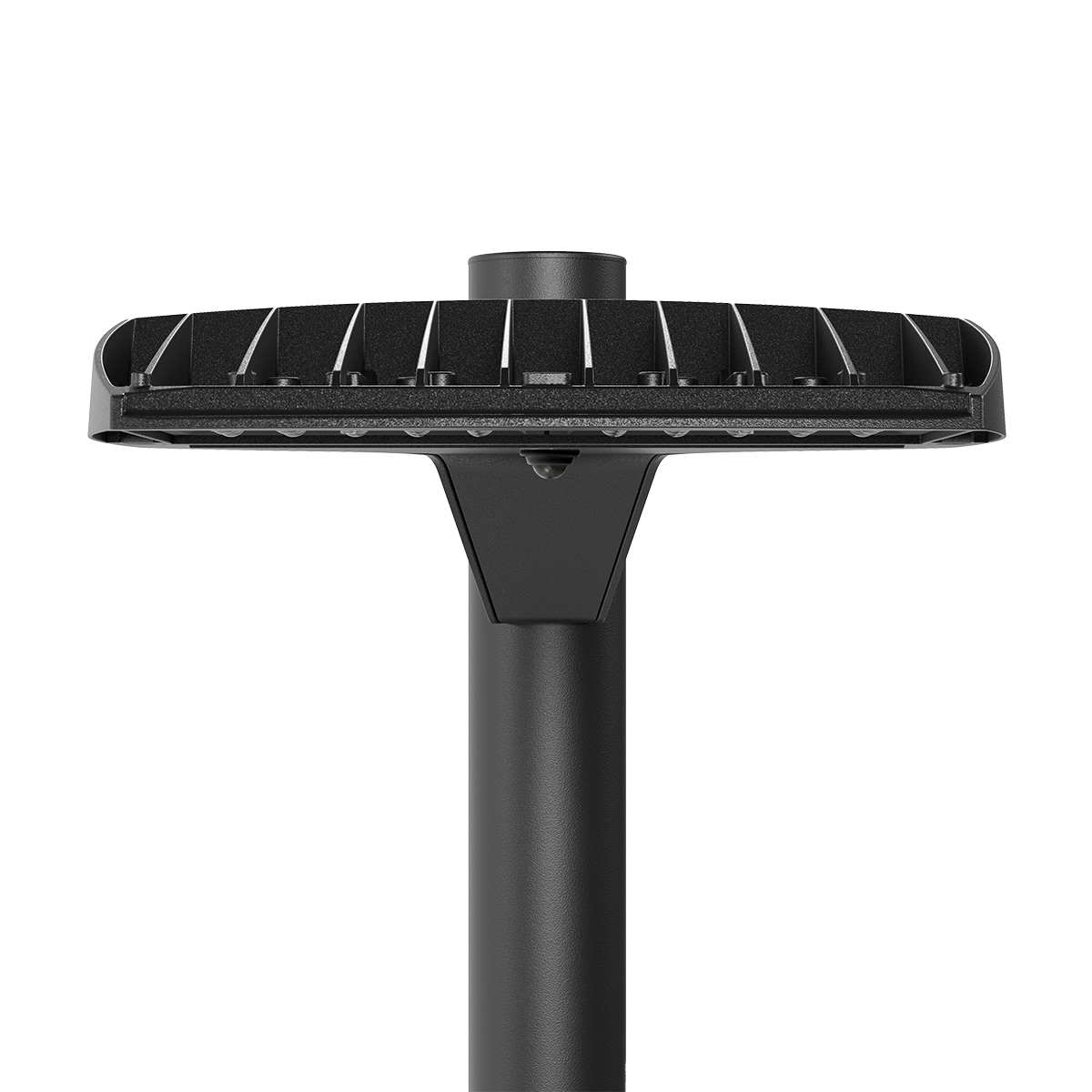

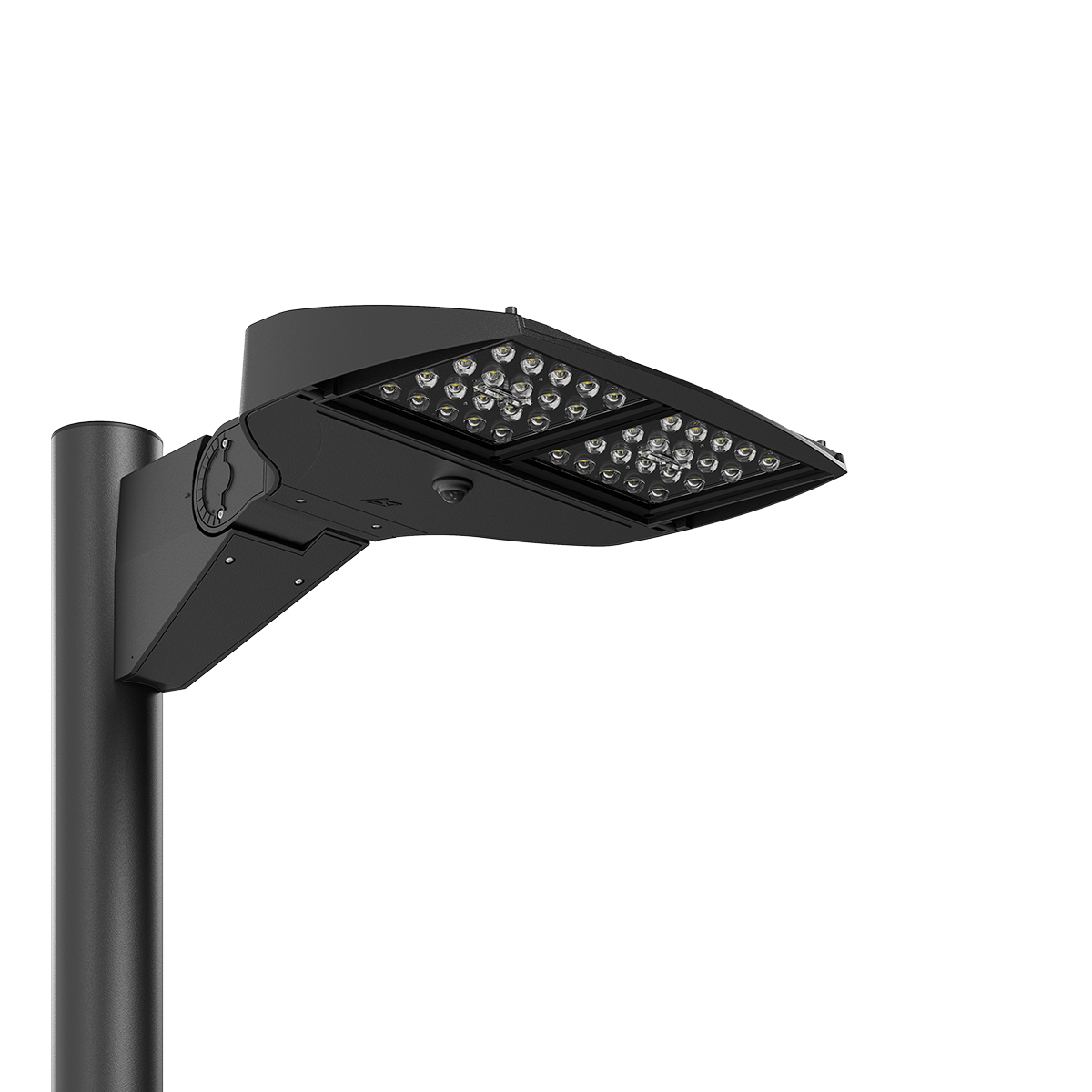

V-LOCITY™ Area Light Small

VALS

The V-LOCITY™ area light features sleek curved styling along with a low-profile design perfectly suited for architectural and commercial applications. Best in class photometric distributions with exceptional target efficiency and lumens per watt allow for maximum return on investment by reducing the number of poles, luminaires and wattage draw required on a project. With multiple interchangeable mounting arms it is ideal for a wide variety of retrofit as well as for new construction projects, providing a true one-person installation that also minimizes the need for adapter brackets or drilling in the field. Field rotatable and replaceable light engine/optic/shielding allow for fast and easy field changes to light distribution and color temperature, minimizing resolution time during and post installation.

Ideal Applications:  Parking lot lighting for schools, office buildings & strip malls, roadway lighting, street lighting, walkway lighting, automotive dealership, outdoor sport court, c-store & quick serve restaurant parking, grocery/pharma and retail lots, large distribution center & warehouse parking lots, loading bays and storage areas.

Who sells our products?  Various lighting sales agents, lighting manufacturer’s representatives, lighting distributors.  See our Sales Representative Locator.

Available Variations

Ask a Question

Features & Specifications

  • 15+ optical distributions with industry-leading photometry
  • 4 interchangeable mounting arms ideal for retrofit to existing poles and tenons
  • Field Replaceable Light Engine and Rotatable Optics
  • 50°C Ambient Temperature Rating Standard
  • Optional Airlink™ Wireless, Integral Bluetooth™ Motion and Photocell Sensor
  • 5-year Warranty
Max Lumens
27,000
Min Lumens
6,000
Sensors
Standalone Motion/Photocell Wireless Motion/Photocell
Color Temperatures
5000 4000 3500 3000 2700
Additional Options
BAA Compliant (Buy American Act)BluetoothDimmableIDA – Dark Sky ApprovedIP65IP66ROHS CompliantTitle 24 CompliantUL ListedUL Listed Wet Location

Photometrics & Applications

Lighting Layout Request BIM (Revit) Library
