Peak Series Strip
The Peak Series Strip showcases versatility and creativity in ease and functionality. The Peak strip is available in a standard version (PST) with diffuse lens options for maximum light output and energy efficiency or in a Low Glare version (PST LG) that focuses on visual comfort and targeted illumination.

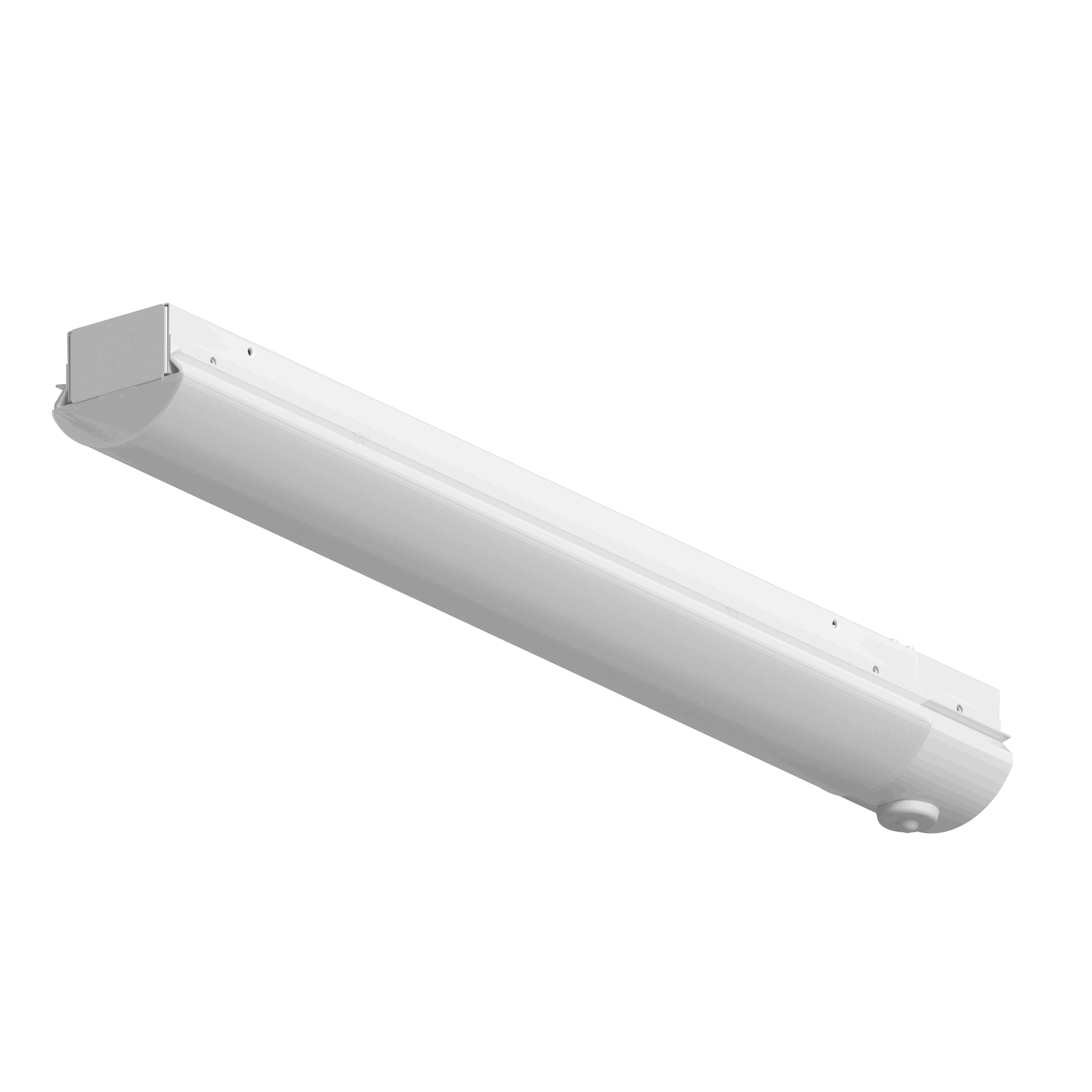

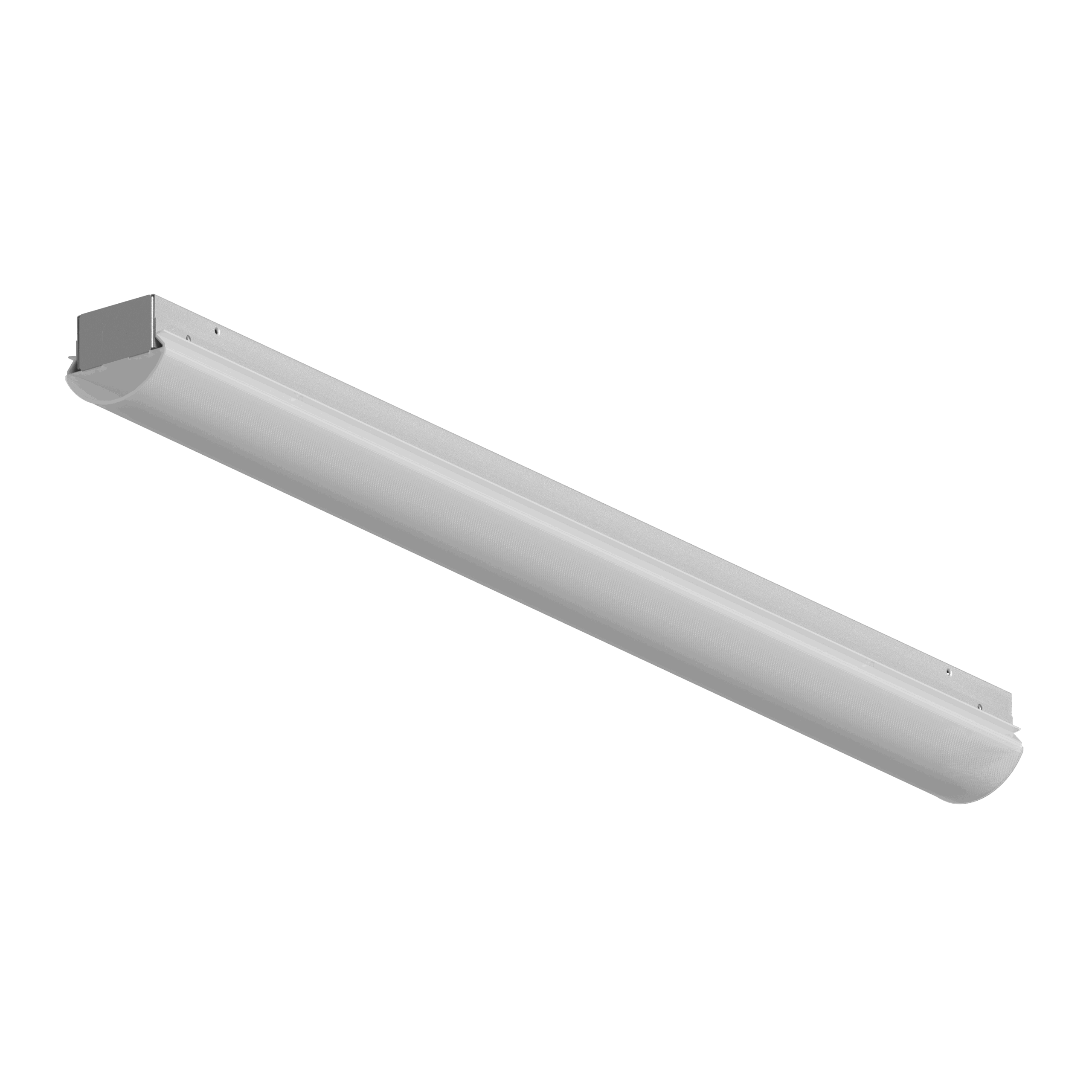

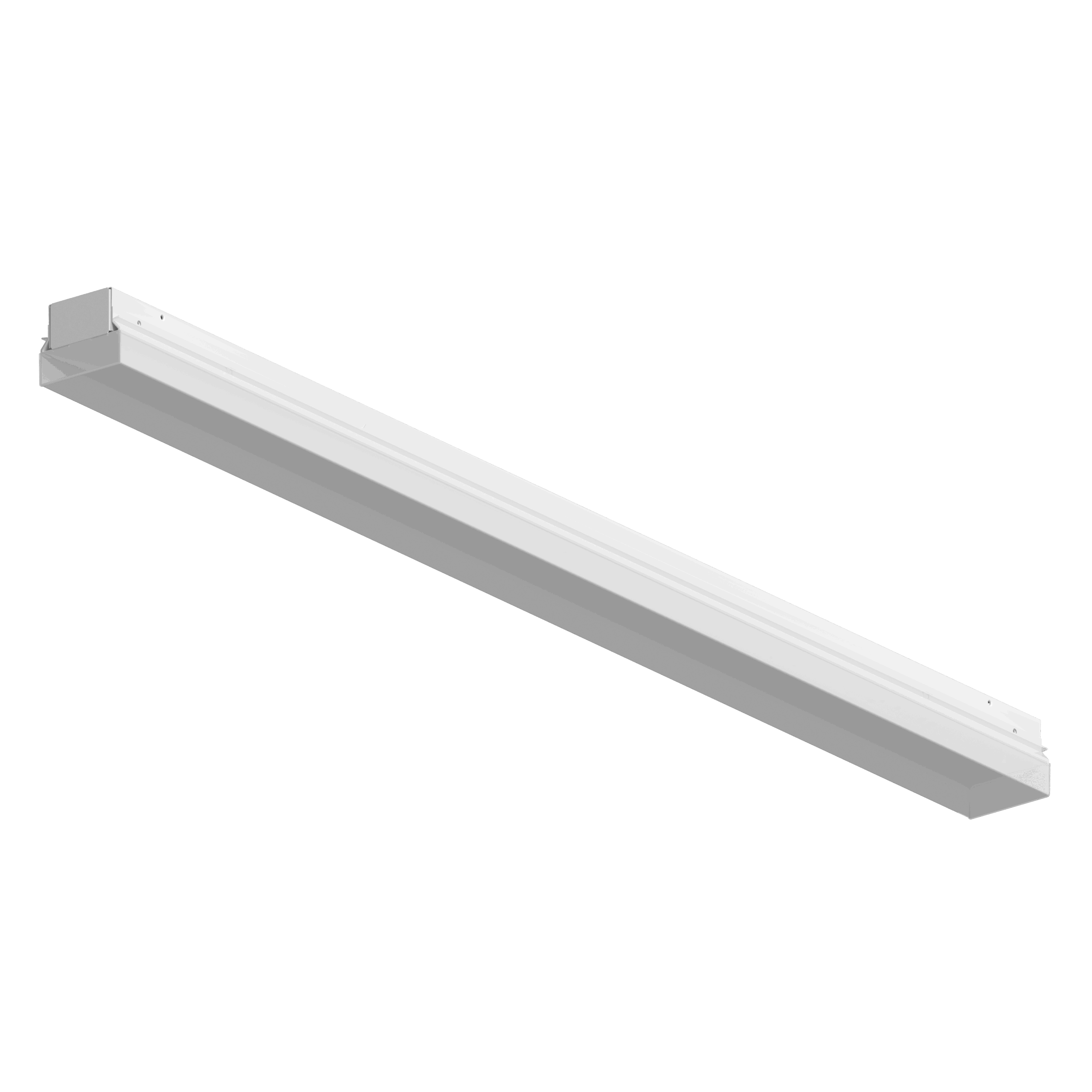

Standard Lens
Delivering up to 166 lumens per watt, the PST is available with 5 different lens or optic choices to cater light distribution where its needed most. Access to the electronics is tool-less for a quick and easy installation experience.

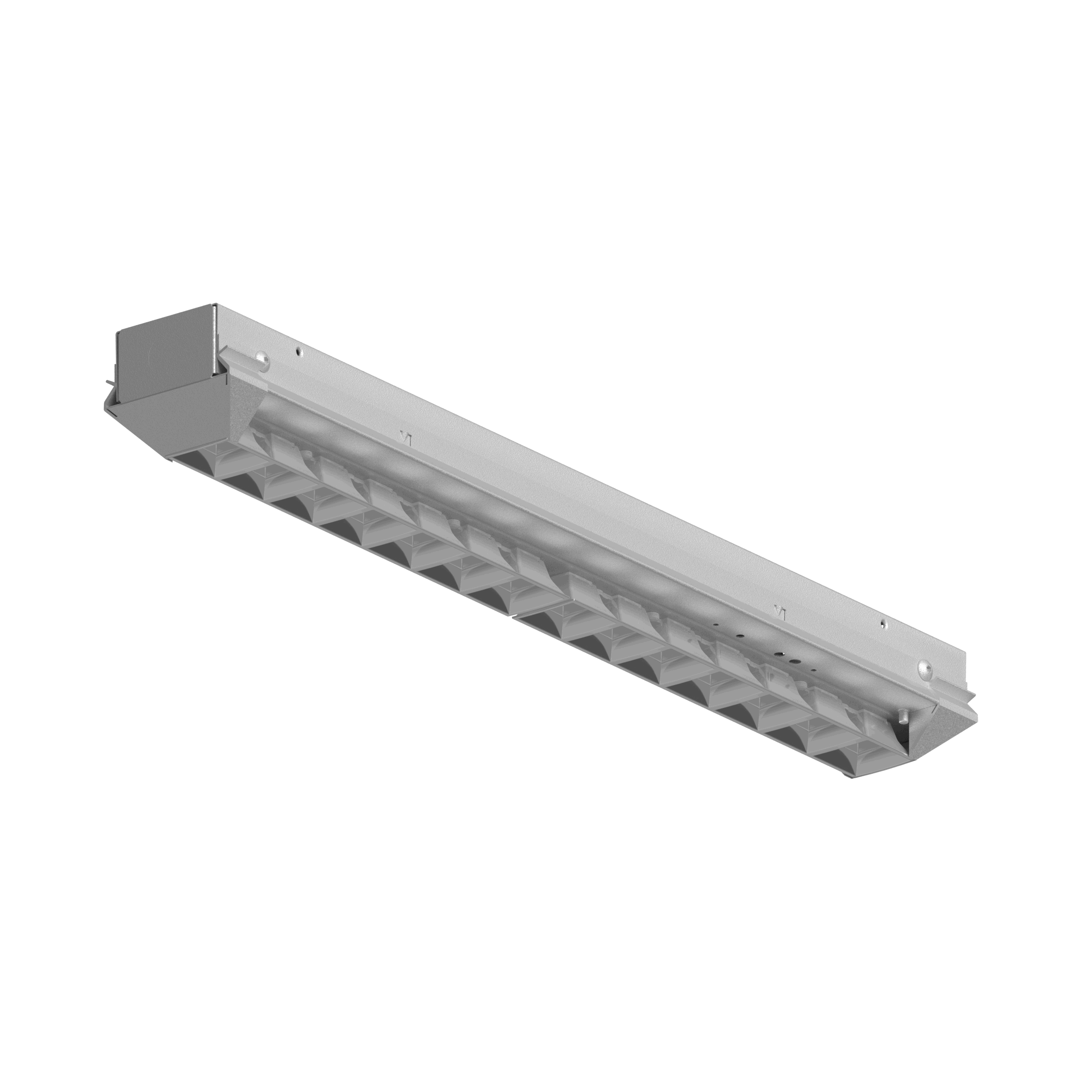

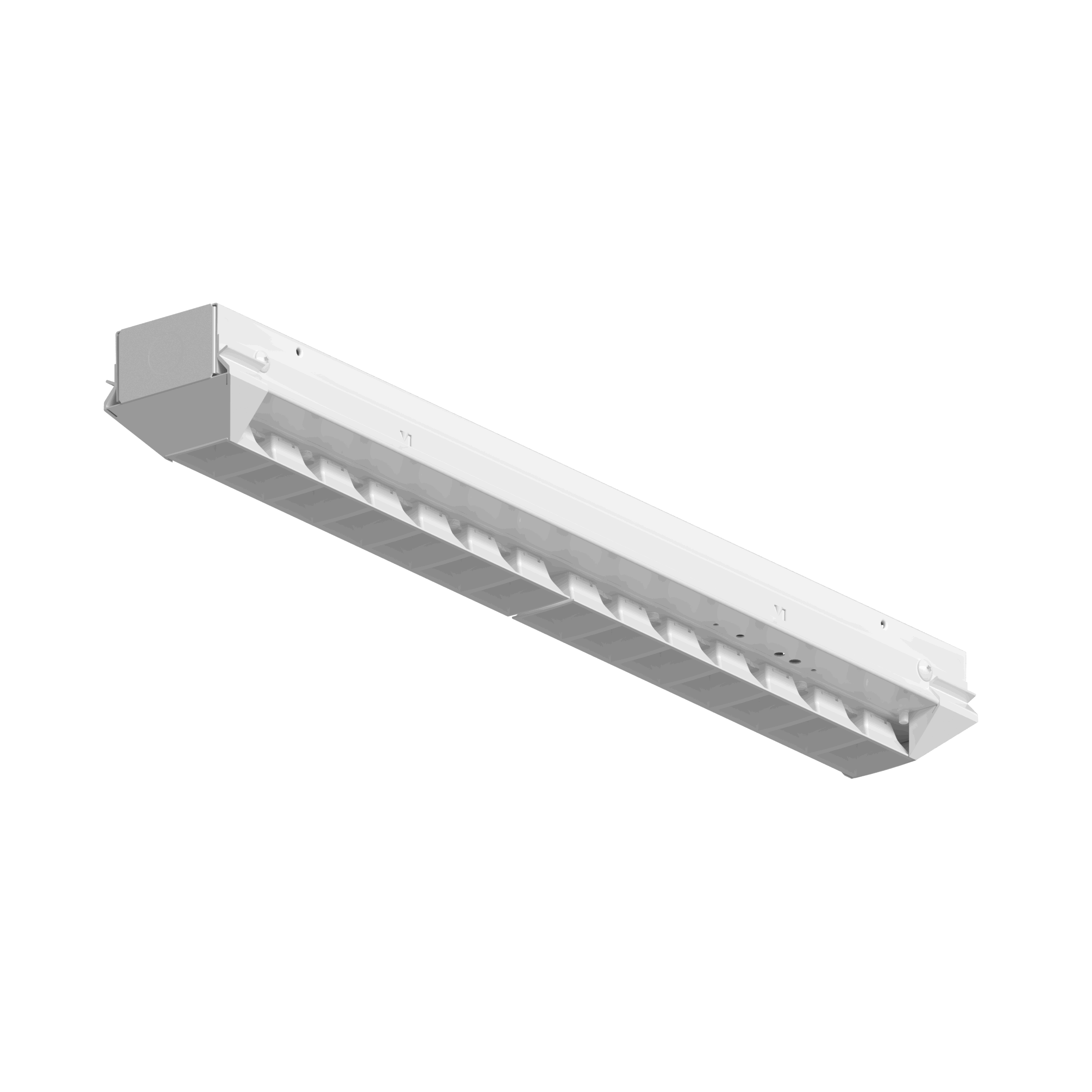

Low Glare
LSI provides unmatched visual comfort with linear solution that is industry low unified glare rating of 8. The PST LG proves that functional lighting doesn’t have to sacrifice aesthetic value with a clean, modern look.
It’s not just lighting—it’s an investment in a brighter, more efficient, and more productive industrial environment.
Ideal Applications: Warehouse lighting, storage areas, retail stores, convenience stores
Who sells our products? Various lighting sales agents, lighting manufacturer’s representatives, lighting distributors. See our Sales Representative Locator.
Features & Specifications
- Both versions feature the following:
- 3 standard finishes (Gloss White, Black, or Metallic Silver)

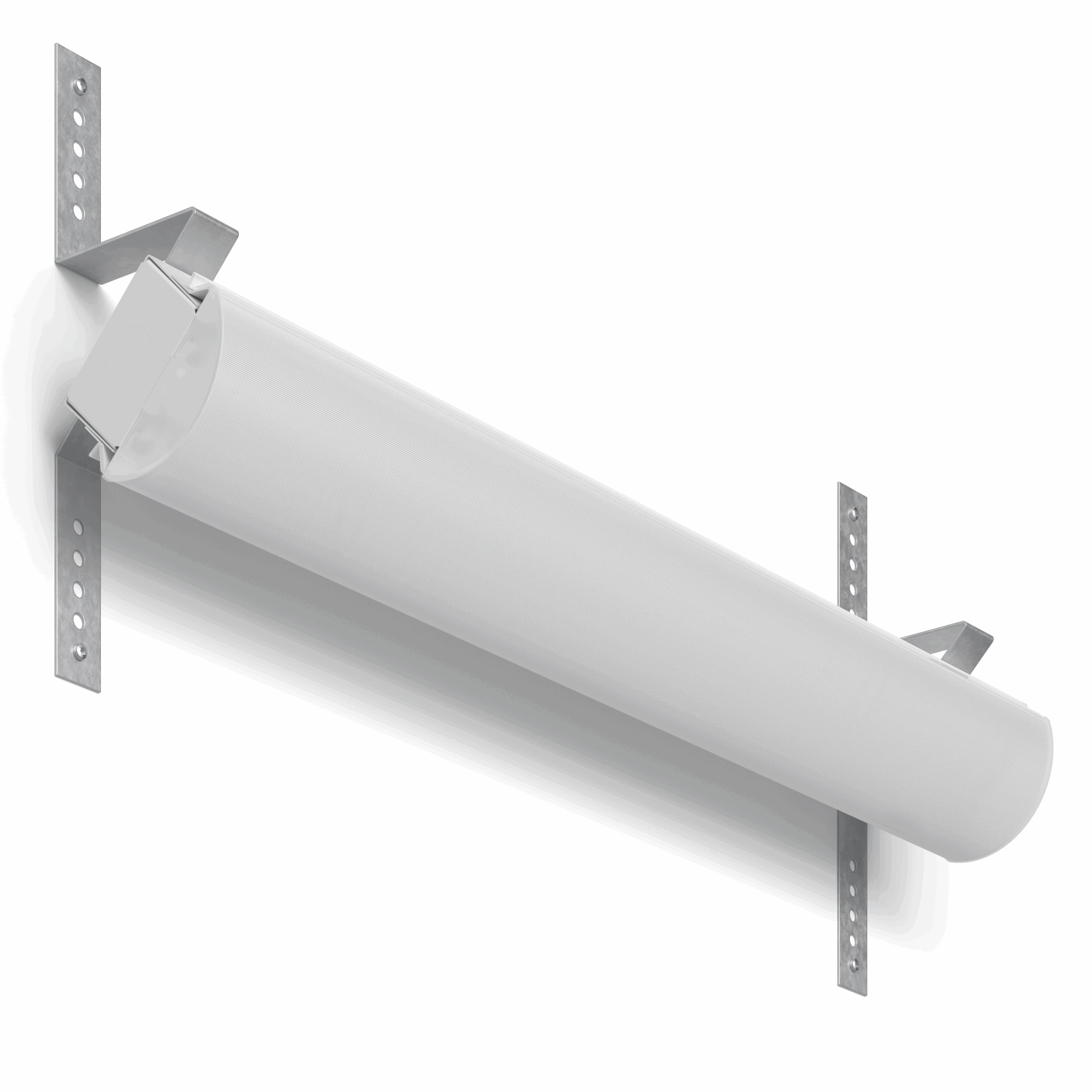

- Mounting options include adjustable cable kits, surface mount, or pendant mount
- Continuous run options
- Optional 10kV surge protection
- 10W emergency battery options (in 4ft and 8ft)
- PST standard units feature the following:
- Efficacy up to 166 lumens per watt
- Choose from 5 different lens options

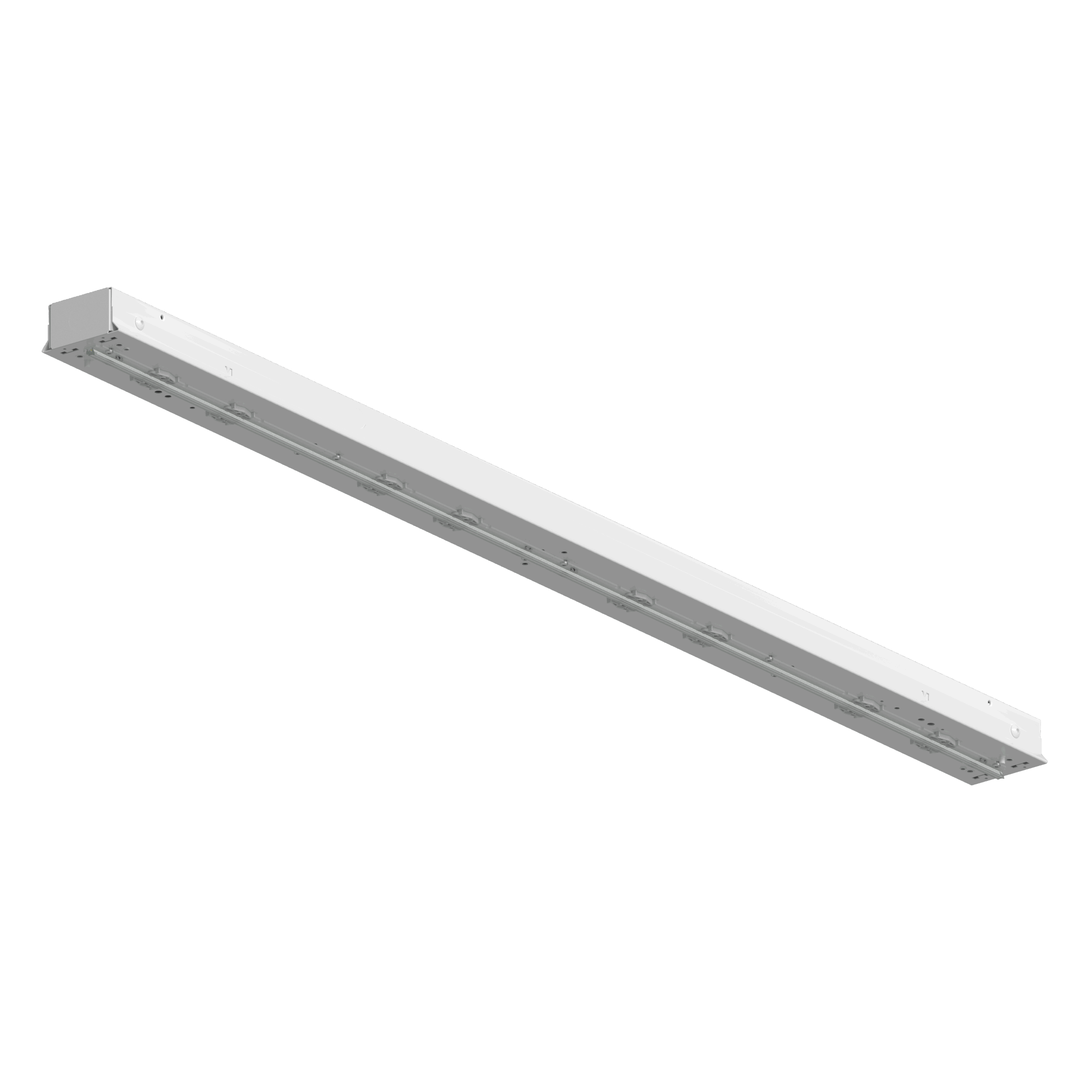

- No lens for highest lumen output
- Acrylic curved or flat diffuse for highest lens output
- Polycarbonate diffuse lenses for high impact protection
- Acrylic asymmetric or narrow optic for specific focus areas
- 3000K, 3500K, 4000K, 5000K in 80 or 90 CRI
- PST Low Glare units feature the following:
- A unique 2 part optical system with unified glare ratings as low as 8
- 6 different polycarbonate baffle choices for balance of performance and aesthetics
- 3000K, 3500K, 4000K, 5000K in 80 CRI
- Complete Warranty Terms
Listings
- List for UL 1598 and UL 8750
- Suitable for damp locations
- Meets Buy American Act (BAA) and Build America, Buy America (BABA) Requirements
- State of California Title 24 compliant
Resources & Downloads
Photometrics & Applications
Markets
- Automotive
- Commercial
- Grocery
- Industrial
- Restaurants
- Retail
- Sports
Lighting Calculation Tools
Typical Room: 40′ x 40′ x 10′
Calculation Reflectances: Ceiling-80% Walls-50% Floor-20%
Target Value: 45fc Average
Product Videos
Side by Side Lens Distribution Comparison
Low Glare (LG) vs Standard Lens
